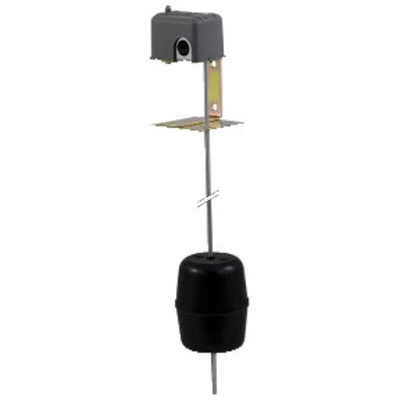

9036FG, Telemecanique Sensors 9036 Series Pedestal Mount Polypropylene Float Switch, Float, 2 NC DPST, 230 (Single Phase) V,

Telemecanique Sensors Float Switch, Vertical Orientation, 475V AC Voltage Rating - 9036 Series - 9036FG

Control the movement of fluids through your system with this float switch from Telemecanique Sensors. It activates when liquid rises to a set level, automatically controlling a circuit to turn the flow on or off. As it handles up to 60 switching cycles a minute, the device keeps pace with fast-moving processes. Thanks to the vertical floating position, sensitive electronics are kept clear of liquid to cut glitches out of the picture. There's no need to worry about impact wearing out the switch's parts, as its PP enclosure shrugs off knocks and scrapes.

Features & Benefits

• Works with AC and DC voltages for wide compatibility
• Electrical lifespan of 100 cycles supports reliable switching over a long period
• Screw-clamp terminals to hold wiring securely and achieve a vibration-proof fix
• Two pre-cut cable entries minimise preparation work
• Safe for use in a wide temperature range between -30°C and +104°C

Applications

• Water management
• Agricultural equipment
• Logistics industry

Which fluids can I use this float switch with?

It's a versatile option that works with commonly used fluids including water, oils and corrosive liquids.
