9038CG36Z20, Telemecanique Sensors 9038 Series, Mechanical Alternator Screw In Mounting Float Switch 4 NC DPST Output

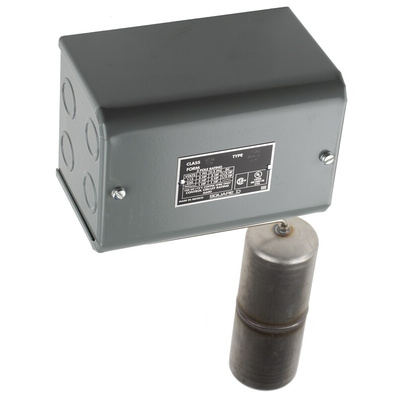

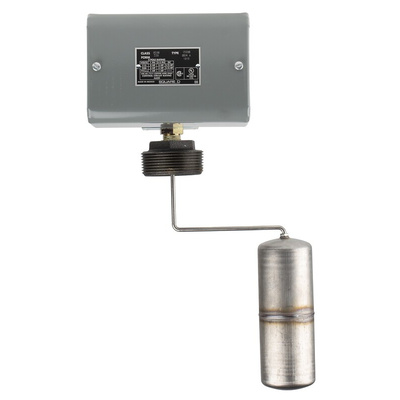

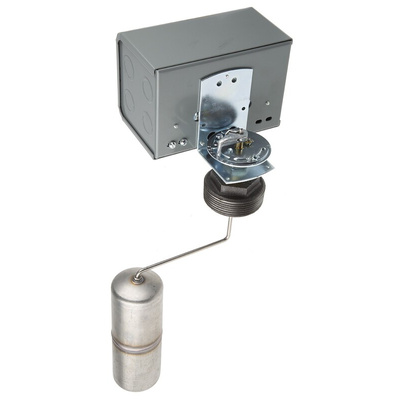

Telemecanique Sensors Float Switch

The Telemecanique float switch is a mechanical alternator type closed tank float switch used to detect the rising or falling liquid level. Its outer body is made from painted cold rolled steel material. This switch consists of a switch, rod and float. Its operating temperature ranges between -22°F and 220°F. It has 4 NC double pole single throw (DPST) contact type

Features and Benefits

• Fluids controlled -fresh and sea water, hydraulic oil, corrosive fluid
• Operating AC voltage 230V (1-phase) and 475V (3-phase)
• Operating DC voltage 230V
• Screw-in bushing mounting type

Applications

• Monitoring liquid levels

Certifications

• CSA certified
• UL approved

Datasheet
