RS PRO MT-6600 Multifunction Tester, 1000V With Bluetooth, Тестер

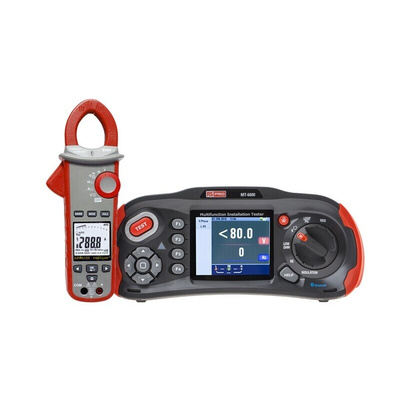

RS Pro MT-6600 Electrical Tester and Bluetooth Clamp Meter

This exclusive 2 piece kit from our trusted and highly reliable RS PRO range includes the RS PRO multifunction electrical tester along with the RS PRO Bluetooth clamp meter. These two devices are essential in order to verify the safety of electrical installations in domestic, commercial and industrial settings. This highly efficient kit provides a multifunctional electrical testing kit that combines elements of a voltage tester, continuity tester, resistance tester plus more in one handy kit.

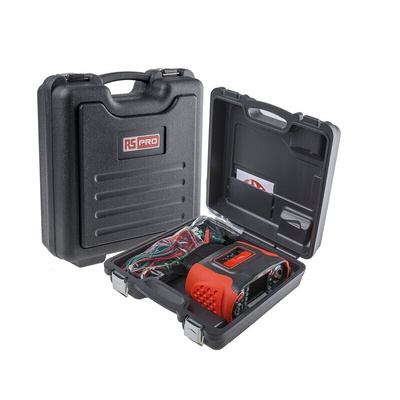

Both devices come with a durable carry case to keep the devices safely stored and protected when not in use.

Our range of testers are designed to be safe, simple to use and hassle-free. Each of our testers are available calibrated and are the perfect solution for troubleshooting, commissioning, and preventative maintenance applications.

Kit includes:

144-5338 - RS PRO Multifunction Electrical Tester
Introducing the RS PRO electrical tester. A brilliant tester ideal for use on motors, generators, cables, or switch-gear. This electrical tester has been designed to perform a full range of multifunctional tests, all the buttons have a positive feel a true sign of quality the screen is clear and functions easy to follow.

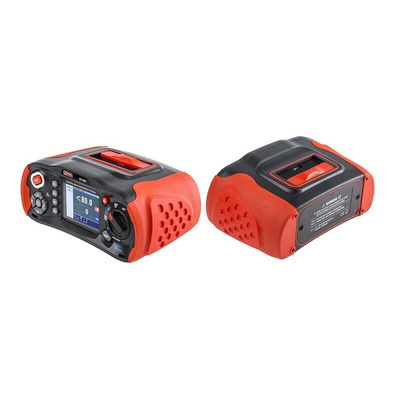

The RS PRO is MT-6600 is a rugged multifunction installation tester with a 3.5" TFT colour LCD display that provides insulation resistance, earth resistance, loop impedance, voltage, RCD, PFG and PSC testing. This device is perfect for carrying out insulation continuity tests and ensures the fixed wiring is safe and correctly installed. It's fast sampling and dual display, clear symbols and exceptionally wide viewing angle are for easy and safe readings.

Features and Benefits

• Multifunction tester
• 3.5 in TFT colour LCD display with 320 x 240 pixels
• Fast high current loop test
• Variable RCD current mode for customized settings
• PASS/FAIL indication for RCD tests
• Select voltage measurement between L-N, L-PE and N-PE
• Support SD memory and USB and Bluetooth interface
• Internal Memory
• Safe Earth Volt Touchpad detects raised earth voltages greater than 50 V, indicating potential dangerous situations
• Slim probes designed with test button
• For easy, always reliable and accurate compensation of test leads and mains cords

Application Information

Multifunction Electrical Testers, also known as MFT, is a critical piece of equipment for testing electrical circuits. They are typically used in commercial, domestic and electrical testing applications.

162-4455 - RS PRO Bluetooth Clamp Meter

This RS PRO clamp meter is an excellent electrical test tool that combines a basic digital multimeter with a current sensor. It provides advanced power features, phase rotation, total harmonics distortion and enables fully professional power measurement application with excellent performance. The device also has a built-in Bluetooth feature for streaming data on mobile devices such as mobile phones or a tablet, providing easy data acquisition and analysis at anytime.

Bluetooth connectivity
The clap meter uses low-power Bluetooth v 4.0 wireless technology to transfer the real-time data. You can use the RF communication to link to android or apple devices.

Features and benefits

• Safety Category: CAT III 1000 V, CAT IV 600 V
• Maximum AC Current Measurement: 600A ac
• Active backlit with large white LED display
• 10,000 count digital display
• 50 segment analog bar graph
• 100K Ohms resistance capability
• High frequency rejection
• Peak hold
• Min max hold
• Data logging up to 9,999 records
• Auto store up to 1000 memories

FAQs

What batteries are required?

The RS PRO 155B power clamp meter with Bluetooth connectivity requires 1.5V AAA (x 6) Alkaline batteries.

The RS PRO multifunction installation tester requires either 1.2 V AA Rechargeable Ni-MH or 1.5 V AA Alkaline

What is the IP rating?

The IP rating refers to the level of protection offered by the enclosure of the device. The first number relates to the level of protection from solids such as dust, whereas the second digit relates to liquid. The higher the IP rating, the higher the level of protection will be.

• The clamp meter features an IP67 rating, offering protection from dust ingress and water.

• The multifunction tester features IP65, offering protection from dust ingress and moisture.

Why choose RS PRO Electrical Testers

Our range of testers is designed to be safe, simple to use and hassle-free. Each of our testers is available calibrated and are the perfect solution for troubleshooting, commissioning, and preventative maintenance applications.
