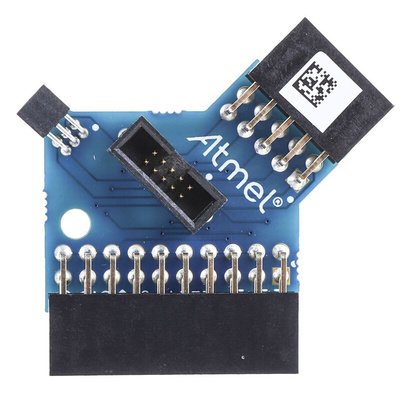

Microchip ATATMEL-ICE-ADPT Adapter for use with Atmel-ICE

Microchip Technology Adapter

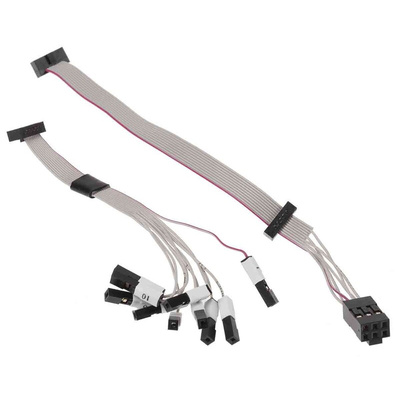

The Microchip Technology Atmel-ICE is a powerful adapter for debugging and programming ARM Cortex-M based Atmel SAM and Atmel AVR microcontrollers with on-chip debug capability. It has Atmel-ICE unit, 1.8m USB cable and IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector. This is applicable for Atmel-ICE.

Features and Benefits:

• Fully compatible with Atmel studio
• ITM serial trace capture at up to 3MB/s
• Supports JTAG, PDI clock frequencies from 32kHz to 7.5MHz
• Supports programming and debugging of all 8-bit Atmel AVR XMEGA, megaAVR and tinyAVR devices with OCD
• Supports programming and debugging of all SAM ARM Cortex-M based microcontrollers
• USB 2.0 high-speed host interface

Certifications:

• 2002/95/EC
• 2002/96/EC
• 2004/108/EC
• EN 61000-6-1
• EN 61000-6-3
• FCC CFR 47 Part 15

Kit Types:

Cable kit: 177-9591

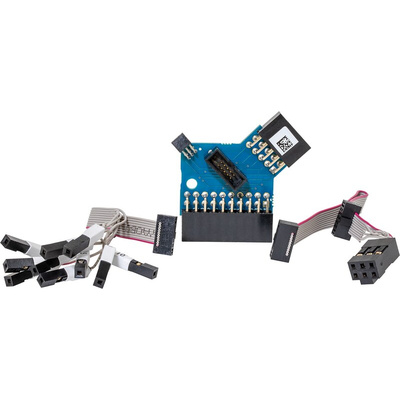

Adapter kit: 177-9590
Basic kit: 130-6123
PCBA kit: 130-6124
Full kit: 130-6122
