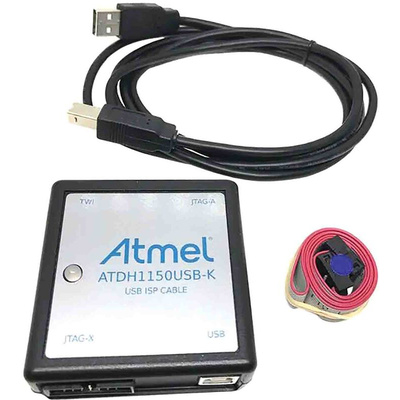

Microchip Technology USB Cable
The Microchip Technology JTAG ISP download USB cable connects to a standard USB 2.0 port on a PC and a 10-pin or 14-pin JTAG header on the programming circuit board. It transfers the JTAG instructions and data generated by the software running on a PC to the CPLDs on the target circuit board. This is applicable for ATF15 CPLD.
Features and Benefits:
• Allows users to perform JTAG ISP of Atmel CPLDs
• Interfaces with a standard USB 2.0/3.0 Port on a PC
• Supported by the ATMISP Software (Version 6.6, 6.7 and 7. X)
• Supports 10-pin and 14-pin JTAG interface headers (JTAG-A and JTAG-X)
• Supports target systems using 5.0V, 3.3V, 2.5V, or 1.8V VCC and I/O standards
Certifications:
• IEEE 1149.1
Техническая спецификацияDatasheet
