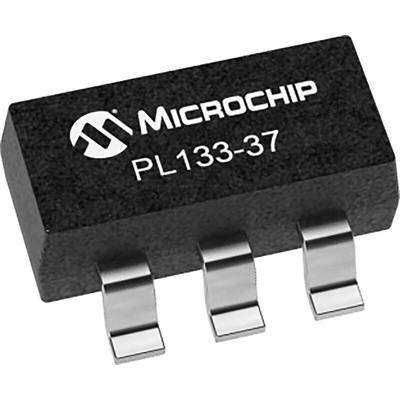

Microchip PL133-37TC PLL Clock Buffer 6-Pin SOT-23

The PL133-37 is an advanced fanout buffer design for high performance, low-power, small form-factor applications. The PL133-37 accepts a LVCMOS or a Sine Wave reference clock input of 1MHz to 150MHz and produces three outputs of the same frequency. Reference clock inputs may be LVCMOS or sine-wave signals (the inputs are internally AC-coupled so no external components required). Offered in a small 3 x 3mm SOT23, the PL133-37 offers the best phase noise and jitter performance and lowest power con-consumption of any comparable IC.

3 LVCMOS Outputs
12mA Output Drive Strength
Input/Output Frequency: Reference Clock: 1MHz to 150MHz
Supports LVCMOS or Sine Wave Input Clock
Very Low Jitter and Phase Noise
Low Current Consumption
Single 1.8V, 2.5V or 3.3V ±10% operation
Operating Temperature Range:
0°C to 70°C (Commercial)
-40°C to 85°C (Industrial)
Available in SOT23-6L GREEN Packages
