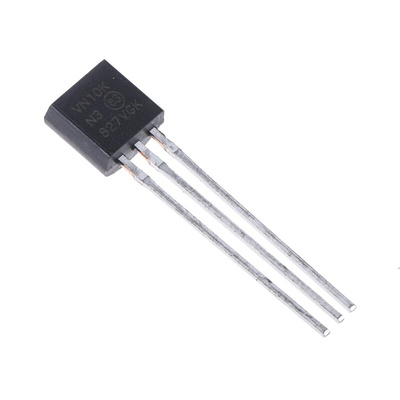

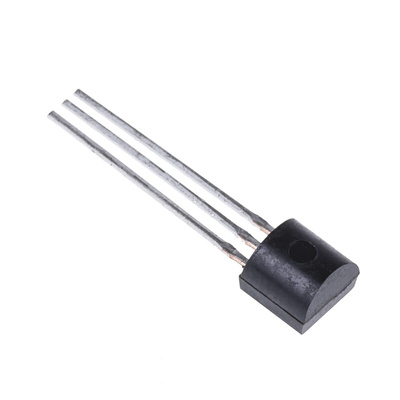

N-Channel MOSFET, 310 mA, 60 V, 3-Pin TO-92 Microchip VN10KN3-G, МОП-транзистор

1779716
Номер производителя: VN10KN3-GПроизводитель: Microchip
Цена за шт. (норма упаковки 25 шт)
140.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Microchip Technology MOSFET

The Microchip Technology through-hole mount N-channel MOSFET is a new age product with a drain-source resistance of 5ohms at a gate-source voltage of 10V. It has a drain-source voltage of 60V and a maximum gate-source voltage of 30V. It has continuous drain current of 310mA and maximum power dissipation of 1W. The minimum and a maximum driving voltage for this transistor are 5V and 10V respectively. The MOSFET is an enhancement mode (normally off) transistor that utilizes a vertical DMOS structure and well-proven, silicon gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperature coefficient inherent in MOS devices. A significant characteristic of all MOS structures, this device is free from thermal runaway and thermally induced secondary breakdown. This vertical DMOS FET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.

Features and Benefits

• Ease of paralleling
• Excellent thermal stability
• Free from secondary breakdown
• High input impedance and high gain
• Integral source drain diode
• Low CISS and fast switching speeds
• Low power drive requirement
• Operating temperature ranges between -55°C and 150°C

Applications

• Amplifiers
• Converters
• Drivers (relays, hammers, solenoids, lamps, memories, displays, bipolar transistors, etc.)
• Motor controls
• Power supply circuits
• Switches

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• JEDEC

Техническая спецификация
pdfDatasheet
