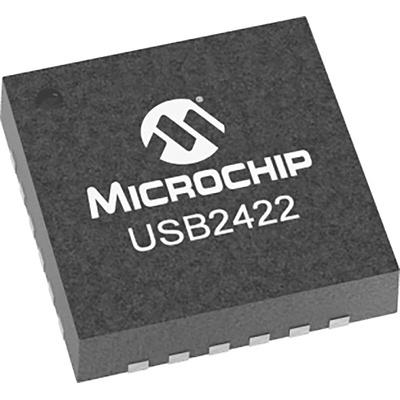

Microchip USB2422/MJ, USB Controller, USB 2.0, 3.3 V, 24-Pin SQFN, Контроллер

The Microchip USB2422 hub is a low-power, single transaction translator, hub controller IC with two downstream ports for embedded USB solutions. The Microchip hub controller can attach to an upstream port as a Hi-Speed and Full-Speed hub or as a Full-Speed only hub. The Microchip hub supports Low-Speed, Full-Speed, and Hi-Speed (when configured as a Hi-Speed hub) downstream devices on the enabled downstream ports.

High performance, low-power, small footprint hub controller IC with two downstream ports
Optimized for minimal bill-of-materials and low-cost designs
Supports the USB Battery Charging Specification, Revision 1.1
Fully integrated USB termination and pull-up/pulldown resistors
Supports a single external 3.3 V supply source, internal regulators provide 1.2 V internal core voltage
On-chip driver for 24 MHz crystal resonator or external 24 MHz clock input
ESD protection up to 6 kV on all USB pins
