TC74 is a serially accessible digital temperature sensor particularly suited for low cost and small form-factor applications. Temperature data is converted from the on-board thermal sensing element and made available as an 8-bit digital word. Communication with the TC74 is accomplished via a simple 2-wire SMBus/I2C™-compatible serial port. This bus also can be used to implement multi-drop/multi-zone monitoring. The SHDN bit in the CONFIG register can be used to activate the low-power Standby mode. Temperature resolution is 1°C. Conversion rate is a nominal 8 samples/sec.

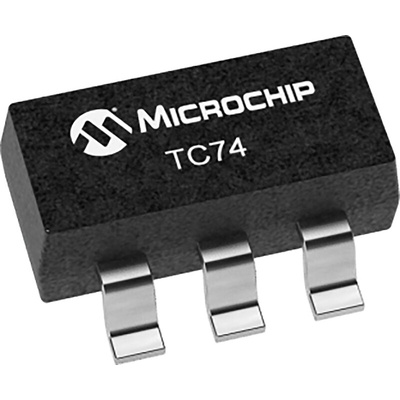

Digital Temperature Sensing in SOT-23-5 Package
Outputs Temperature as an 8-Bit Digital Word
Simple Serial Port Interface
Solid State Temperature Sensing:
±2°C Accuracy from +25°C to +85°C
±3°C Accuracy from 0°C to +125°C
Supply Voltage of 2.7V to 5.5V
Low Power:
200 μA (typ.) Operating Current
5 μA (typ.) Standby Mode Current
