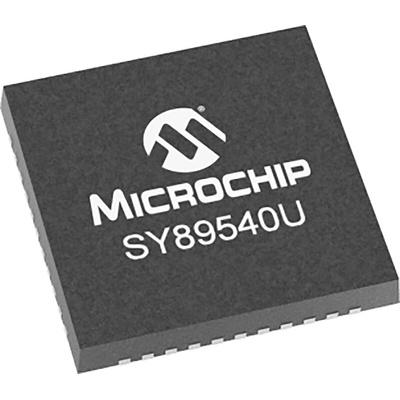

Microchip 4 x 4 Crosspoint Switch, SY89540UMY, Матричный переключатель

1779766
Номер производителя: SY89540UMYПроизводитель: Microchip
Цена за шт.
5834.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The SY89540U is a low-jitter, low skew, high-speed 4x4 crosspoint switch optimized for precision telecom and enterprise server/storage distribution applications. The SY89540U guarantees data-rates up to 3.2Gbps over temperature and voltage. The SY89540U differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path.

Provides crosspoint switching between any input pairs to any output pair
Patent pending, channel-to-channel isolation design provides superior crosstalk performance
Guaranteed AC performance over temperature and voltage:
DC-to-3.2Gbps throughput
Power supply 2.5V ±5%
-40°C to +85°C temperature range
Available in 44-pin (7mm x 7mm) QFN package
Pb-Free Green package

Техническая спецификация
pdfDatasheet
