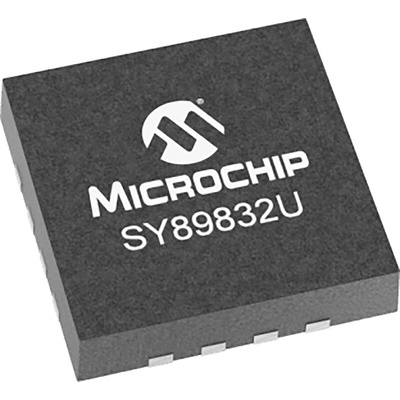

Microchip SY89832UMG, Clock Buffer LVDS, 1-Input, 16-Pin QFN, Распределитель времени

The SY89832U is a 2.5V, high-speed, 2GHz differential LVDS (Low Voltage Differential Swing) 1:4 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 20ps over supply voltage and temperature. The differential input buffer has a unique internal termination design that allows access to the termination network through a VT pin.

Guaranteed AC performance over temperature and voltage:
DC-to >2.0GHz throughput
<570ps propagation delay (IN-to-Q)
<20ps within-device skew
<200ps rise/fall time
Ultra-low jitter design:
81fsRMS phase jitter
Unique, patent-pending input termination and VT pin accepts DC- and AC-coupled inputs
High-speed LVDS outputs
2.5V voltage supply operation
Industrial temperature range: -40°C to +85°C
Available in 16-pin (3mm x 3mm) QFN package

Datasheet
