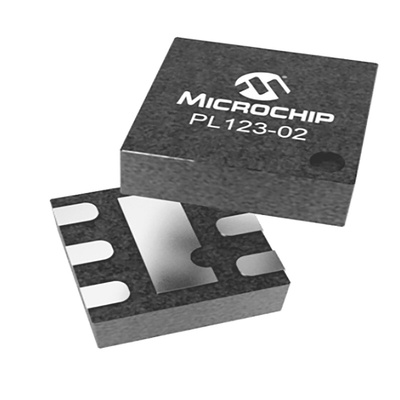

Microchip PL123-02NGI PLL Clock Buffer 6-Pin DFN

The PL123-02N is a low-cost general purpose 1-to-2 LVCMOS fan-out buffer. An output enable (OE) pin is available to enable the outputs or disable them into an active low state. When the outputs are disabled, the IC consumes less than 5μA of power. The OE pin incorporates a pull up resistor giving a default condition of logic “1”. The input and outputs are LVCMOS levels and operate up to 200 MHz. Input signals with Spread Spectrum Modulation can also be used. The spread spectrum modulation will not be affected by the PL123-02N as the signal passes through the IC. A space-saving 6-pin DFN package enables designs requiring minimal board area.

Supports 3.3V, 2.5V, and 1.8V power supplies
Frequency Support:
3.3V Supplies: DC – 200 MHz
2.5V Supplies: DC – 150 MHz
1.8V Supplies: DC – 100 MHz
Output Enable (OE) pin
LVCMOS Input/Output
Accepts SST and non SST clock signals
Operating temperature range from -40°C to 85°C
Available in space-saving 6-pin DFN GREEN package

Datasheet
