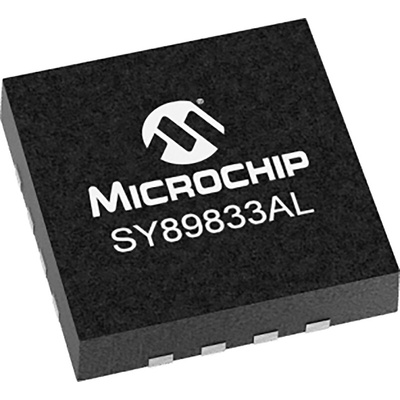

Microchip SY89833ALMG, Clock Buffer LVDS, 1-Input, 16-Pin QFN, Тактовый буфер

The SY89833AL is a lower noise version of the SY89833L 3.3V, high-speed 2GHz Low Voltage Differential Swing (LVDS) 1:4 fanout buffer. Within device skew is guaranteed to be less than 20ps over supply voltage and temperature. The differential input buffer has a unique internal termination design that allows access to the termination network through a VT pin. This feature allows the device to easily interface to different logic standards. A VREF-AC reference is included for AC-coupled applications.

Guaranteed AC performance over temperature and voltage:
DC-to >2.0GHz throughput
<470ps propagation delay (IN-to-Q)
<20ps within-device skew
<190ps rise/fall time
Improved ultra-low jitter design:
195fsRMS phase jitter (typ.)
Unique input termination and VT pin accepts DC- and AC-coupled inputs
High-speed LVDS outputs
3.3V power supply operation
Industrial temperature range: -40°C to +85°C
Available in 16-pin (3mm x 3mm) QFN package
