E32DC200E, Omron Plastic Fibre Optic Sensor 130 (High Resolution Mode) mm, 22 (Super High Speed Mode) mm, 80 (Standard Mode) mm,, Волоконно-оптический датчик

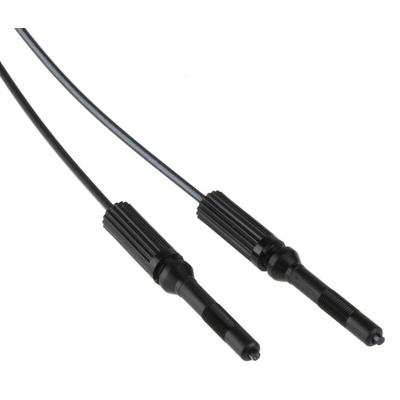

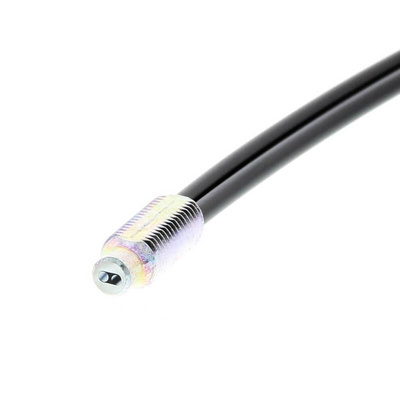

E32 Series Fibre Optic Sensing Heads

Various formats for a wide range of applications. IP67 (IP50 E32-L25)
All fibres are 2m long black PE.
Permissable bend radius 25mm min.

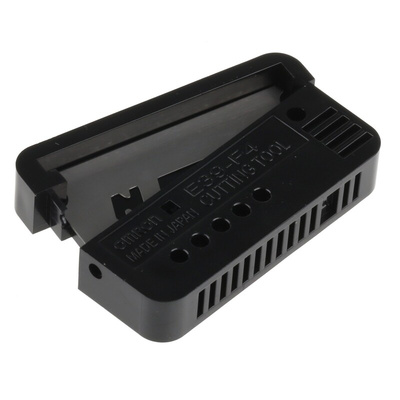

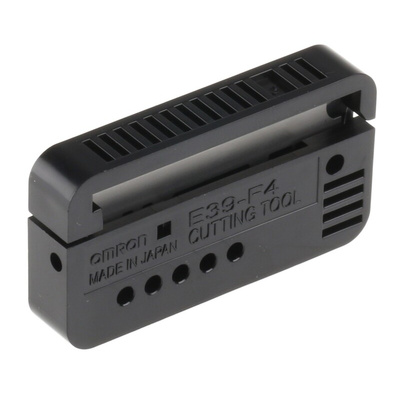

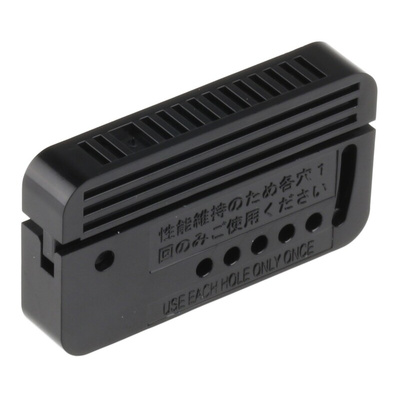

Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber

OMRON Fibre Optic Sensor, PE Cable Jacket, Diffuse Reflective Sensing Technology - E32 Series - E32DC200E

To boost safety in automated systems, choose this fibre optic sensor from OMRON. It keeps a constant watch to accurately detect the position of objects, so you quickly know if they are off-track and likely to pose a hazard. Don't worry about miniature components slipping under the radar, as the device picks up tiny items with a minimum diameter of 0.005mm. For this reason, it's a good match for automated setups in consumer electronics industries. The cable has a minimum bending radius of 10mm, meaning this is a versatile option that slots into complex setups. As it's a diffuse reflective type sensor, it includes a receiver and a transmitter, so you don't have the hassle of installing multiple units.

Features & Benefits

• Operating temperature range between -40°C and +70°C makes it suitable for use in extreme locations
• PE cable jacket resists chemicals and wear for longevity in harsh locations

Applications

• Industrial robotic lines
• Plastics manufacturing
• Food and beverage industries
• Warehouses and packaging facilities

How long is this fibre optic sensor's cable?

The cable is 2m long, which gives you easy reach during installation.

Fibre Selection Product Quick Guide

Catalogue - Fiber-Optic Sensors
