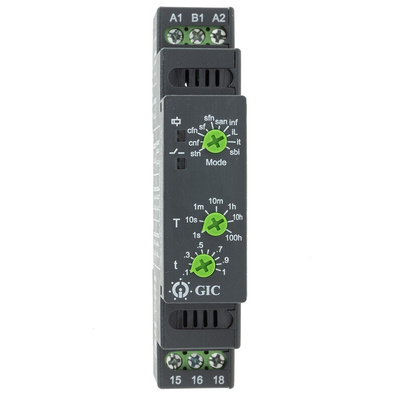

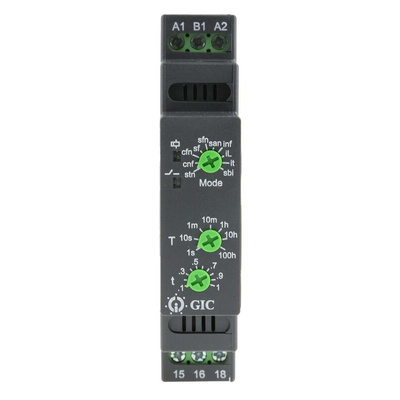

RS PRO SPDT Multi Function Time Delay Relay, Accumulative Delay on Signal, Cyclic OFF/ON, Cyclic ON/OFF, Impulse

1783459
Производитель: RS PRO
Цена за шт.
13926.00 руб. (С НДС) *
Количество 5+ 10+
Цена 13368.00 руб. 12813.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO SPDT Multi-Function Time Delay Relay - 0.1 s → 100 h, 1 Contact, Accumulative Delay on Signal, Cyclic

This SPDT (single pole double throw) time delay relay from the RS PRO range is an electromagnetic component that's used to control the power flow in circuits at timed intervals.

Control relays play a vital role in today’s electronics, opening and closing circuits whenever voltage is applied or removed. Timer relays have the added benefit of pre-selected time intervals, which is useful for things like lighting circuits and safety control for large equipment.

This multi-function relay has a comprehensive range of timing functions and counts in hours, minutes and seconds. It uses a voltage input, which initiates the unit whenever a trigger signal is applied. Adjusting the time-delay is a simple as turning a knob.

The product has a DIN (Deutsches Institut für Normung, the German Institute for Standardization) rail mount, so it's easy to fit onto a rack. These features combine to form a highly versatile timer relay that provides low-maintenance, customisable circuit control.

Features and Benefits

• Supply voltage of 12 to 240 V ac/dc
• DIN-rail mounting
• Multi-function timer
• Maximum current of 16 A
• External power supply
• SPDT contact configuration (single pole, double throw)
• Screw terminal type
• Time range of 0.1 s to 100 h
• 85 mm (depth) x 65 mm (width) x 18 mm (length)
• Operating temperature range of -10°C to +60 °C
• 1CO switch configuration
• Time increments in hours, minutes and seconds

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS Pro Datasheet
Блок питания:
Внешний
Временной диапазон:
0.1 с → 100 ч
Глубина:
85мм
Длина:
18мм
Кол-во контактов:
1
Количество функций таймера:
Multi Function
Конфигурация коммутатора:
1CO
Конфигурация контактов:
SPDT
Максимальное напряжение:
240 В перем./пост. тока
Минимальное напряжение:
12 В перем./пост. тока
Напряжение питания:
12 → 240 В перем./пост. тока
Принцип работы:
Accumulative Delay on Signal, Cyclic OFF/ON, Cyclic ON/OFF, Impulse ON/OFF, Interval, Leading Edge Bi-stable, Leading Edge Impulse, On Delay, Signal OFF Delay, Signal OFF/ON, Signal ON Delay, Trailing Edge Impulse
Приращение времени:
Часы, Минуты, Секунды
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-10°C
Тип клеммы:
Винт
Тип монтажа:
DIN Rail
Ток максимальный:
16 A
Ширина:
65мм
