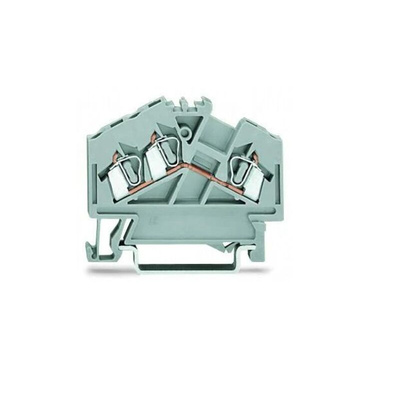

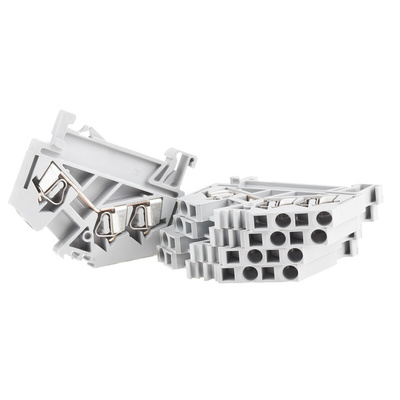

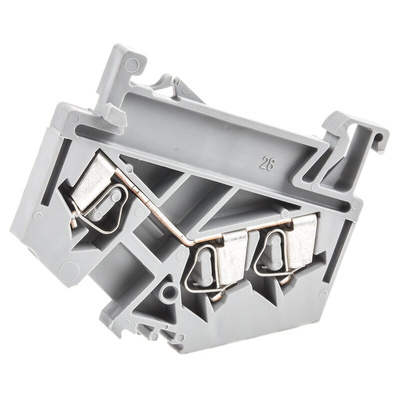

280-641, Wago 280 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Cage Clamp Termination

Wago DIN Rail Terminal Block, 24A Current Rating, 8kV Rated Surge Voltage - 280 Series - 280-641

Need a reliable way to carry signals between wires and your DIN rail-connected components? Count on this terminal block from Wago. It offers a safe alternative to direct cable links, as its shielded copper and aluminium connectors prevent contact with live parts. The unit's PA66 body gives you a two-for-one advantage, as it provides resistance to wear and abrasion while providing insulation to keep electrical hazards at bay. Thanks to a voltage rating of 600V and a current rating of 24A, it's the right choice for medium to heavy-duty applications.

Features & Benefits

• DIN rail mounting for installation without the need for tools
• Accommodates wire sizes between 28 and 12AWG for versatility
• Stops burning in 10 seconds or less for safety in the event of a fire
• Light weight of 6.7g means it won't put a strain on your equipment

Applications

• Transportation industry
• Aerospace systems
• Oil and gas plants

What are the dimensions of this terminal block?

This part has compact dimensions of 36.5 (H) x 5 (W) x 50.5mm (D) for space-efficient installation in busy setups.

870 Series

Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)
