RS PRO Plug In Timer Relay, 12 → 240V ac/dc, 0.1 s → 10days, 1-Function, DPDT

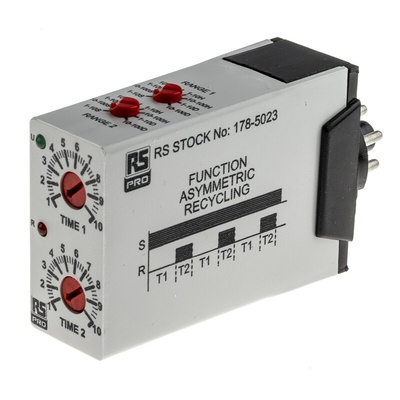

An 8 pin plug in DPCO asymmetrical cyclic timer. A selector switch is provided to select eight different time ranges from 1 sec to 100 days independently on both T1 & T2, fine time selection on a selected range is then achieved via the two percentage potentiometers. A green supply on LED is featured along with a red LED to indicate relay output status. All pin details and the function information is clearly marked on the sides of the housing. The timing is initiated by supply on pins 2 & 7. Timing commences to energise relay contacts “pause first” and then times to de-energise relay contacts. This cycle continues so long as the supply is connected. The time period on both energisation and de-energisation (T1 & T2) are independently selectable. If the supply is removed at any point within the cycle any remaining time will be cancelled and if the relay contacts are energised they will de-energise.

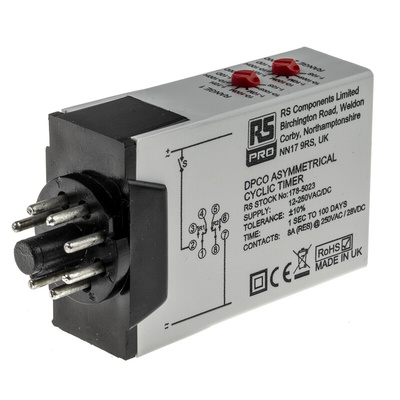

8 pin plug in
DPCO
Multi voltage 12-250VAC/DC
Multi time range 1 sec to 100 days
T1 & T2 separately adjustable

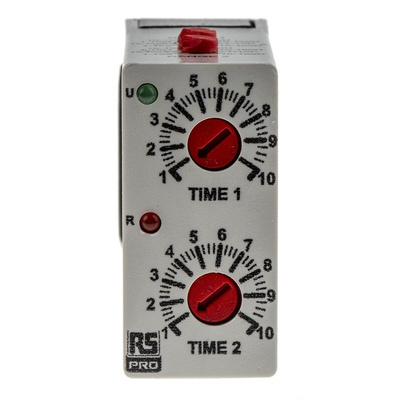

Dual LED indication
