RS PRO Plug In Timer Relay, 12 → 240V ac/dc, 0.1 s → 10days, 1-Function, DPDT

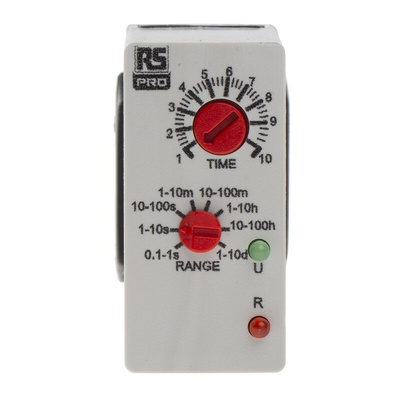

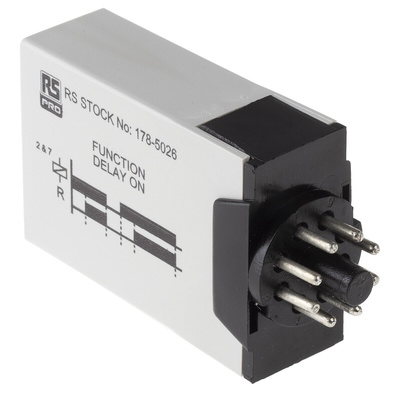

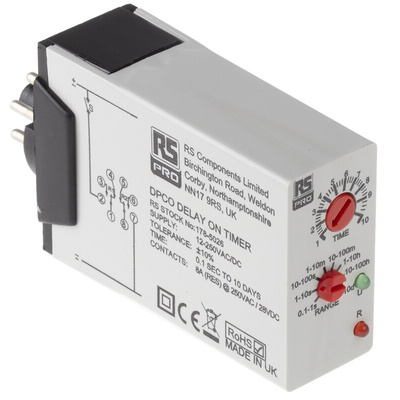

An 8 pin plug in DPCO delay on timer. A selector switch is provided to select eight different time ranges from 0.1 sec to 10 days, fine time selection on a selected range is then achieved via a percentage potentiometer. A green supply on LED is featured along with a red LED to indicate relay output status. All terminal details and the function information is clearly marked on the sides of the housing. The function is initiated by a supply on pins 2 & 7 which commences the timing, the relay contacts will then energise after the timing period. Removing the supply after the timing has been completed will cause the relay contacts to deenergise, if removal of the supply is before timing has been completed the remaining time will be cancelled.

8 pin plug in
DPCO
Multi voltage 12-250VAC/DC
Multi time range 0.1 sec to 10 days
Dedicated delay on
Dual LED indication

RS Pro Datasheet
