ROHM BD3570YFP-ME2, 1 Linear Voltage, Voltage Regulator 500mA, 3.3 V 3+Tab-Pin, TO-252, Регулятор напряжения

ROHM Linear Voltage Regulator

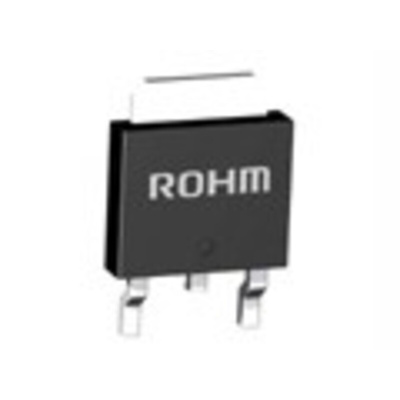

The ROHM TO252-3 package is a 3+Tab-pin, single-channel regulator available with several fixed output voltage. It has an output voltage rating of 3.3V and a current rating of 500mA. These devices are developed to offer the most robust power supply design under harsh automotive environments. It supplies a stable, fixed voltage from an unstable direct input voltage.

Features and Benefits

• Built-in overcurrent protection
• Ceramic capacitor used at the output for stable operation
• Input supply voltage ranges between 4.5V and 36V
• Limiting quiescent current of 30 μA
• Line regulation is 10mV
• Load regulation is 20mV
• Low saturation voltage Type P-Channel DMOS output transistors
• Operating temperature ranges between -40°C and 125°C
• Output accuracy is ±2%

Certifications

• AEC-Q100
