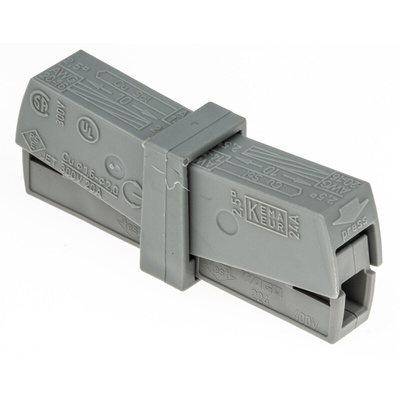

224-201, Wago 224 Series Connector, 3-Way, 24A

224 Series

Lighting connectors designed specifically for the application of fitting wall mounting and ceiling luminaries. Prepare wires by stripping to 9-11mm.

Reliable and vibration proof interconnections
Installation side cable acceptance, 1.0 – 2.5mm² solid pushwire
Lighting side cable acceptance, 0.5 – 2.5mm² solid and fine-stranded (flex) cage clamp

Note

Stock no. 181-4068 has a cage clamp and a push wire connection, stock no. 297-3174 has 1 cage clamp but 2 push wire connections

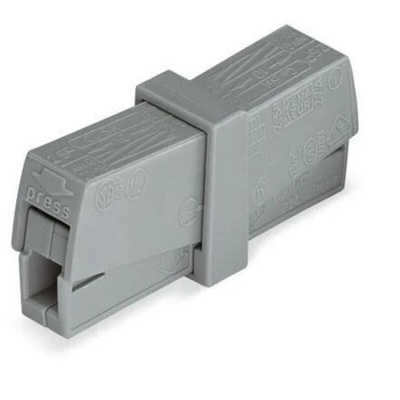

Stock No. 178-6676 has 2 cage clamp connections. See Connector on the right hand side of the image

Wago Lighting Connector, Spring Termination Method, 400V Voltage Rating - 224 Series - 224-201

Searching for a safer way to link your lighting systems to a mains power source? This lighting connector from Wago makes short work of wall-mounted and ceiling installations. A cable diameter range between 9 and 11mm means there's plenty of room to house small and medium-sized wires. You can use this component with high current-consuming setups, as it has a current rating of 24A. Wires slot directly into the unit in a flash using the push-in cage-clamp terminals – no tools needed.

Features & Benefits

• Light weight of 4.6g won't put undue strain on your system
• Rated surge current of 4kV and a 400V nominal voltage, so safe to use with mains circuits
• Side entry makes it easy to connect and disconnect wiring without removing the whole unit
• Flexible design accepts wire sizes between 0.5 and 2.5mm²

Applications

• Domestic electrical repairs
• Consumer electronics
• Commercial lighting installations

How big is this lighting connector?

The component has dimensions of 8 (W) x 15.5 (H) x 42mm (D), making it the ideal fit for compact installations.

Approvals

ASTA; BBJ; CCA; DEMKO; FIMKO; GL; KEMA; OVE; RMR; Rose TesT; SIMKO; VDE

Datasheet

224 Series Connectors

Wiring Diagram
