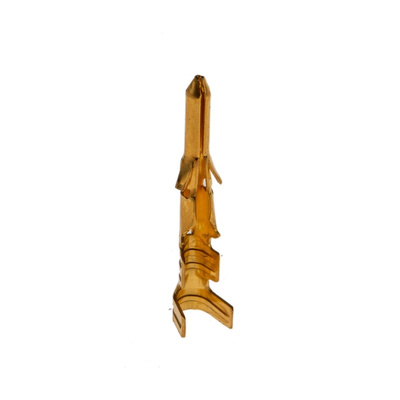

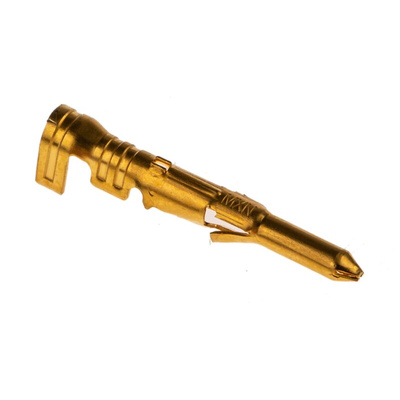

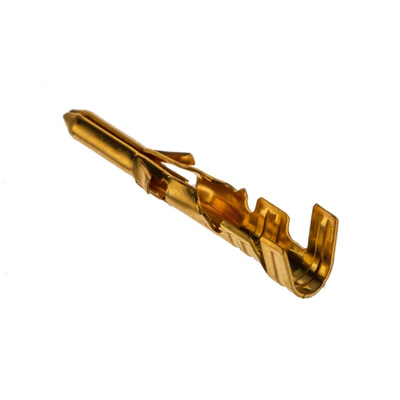

02-06-6103, Molex STANDARD .062" Series Male Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Molex Crimp Terminal, Gold Plating, 24 to 18AWG - 1560 Series - 02-06-6103

Use this crimp terminal from Molex to link cables for power and signal transmission on your PCBs. It's made of highly conductive brass with a low resistance of 3.2mΩ, so you can be certain of a reliable connection. Gold plating ensures the unit can resist corrosion to ensure long-term performance. As the crimp terminal can accommodate wire sizes ranging from 24 to 18AWG, it's a versatile choice to suit your design needs.

Features & Benefits

• Crimp termination method is simple and doesn't need complex tools, saving time and effort
• Low halogen construction for reduced emission of toxic fumes in the event of a fire
• Light weight of 0.127g for easy handling during installation

Applications

• Telecommunications industry
• Commercial printers and scanners

Can I reuse this connector?

Yes, if you properly de-crimp it, you can use this connector on another PCB.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.

Datasheet

Datasheet - 02-06-6103
