RS PRO Insulated Crimp Bootlace Ferrule, 6mm Pin Length, 1.1mm Pin Diameter, 0.25mm² Wire Size, Violet, Наконечники

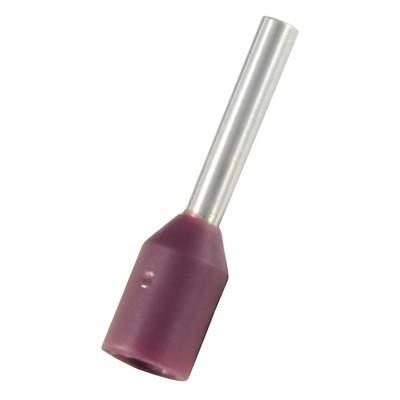

RS PRO Insulated Crimp Bootlace Ferrule, 6 mm Pin Length, 1.1 mm Pin Diameter, 0.25 mm² Wire Size, Violet

Crimp this RS PRO's bootlace ferrule over stranded wires to create a reliable electrical connection without the need for screws or spring clamps. Ferrules are a safe and reliable method of wiring, with no risk of over-tightening screws or shorting the circuit. They also provide strain relief for the wires and ensure that all the wires can be smoothly inserted into the connector, without any of them getting loose.
This ferrule has a violet insulation collar. The possibility of colour-coding helps keep your wires organised and easy to adjust. The insulation collar, made of nylon, also helps protect the wires at the point of contact.
Bootlace ferrules are often used when you need a high level of connection reliability. They are commonly found in circuit breakers, control panels, or larger consumer units in multiple occupancy buildings.

Features and Benefits

• Violet colour
• Insulated insulation
• Nylon insulation material
• Maximum wire size of 26 AWG (American Wire Gauge)
• Maximum wire size of 0.25 mm²
• One entry
• Overall length of 10.4 mm
• Pin diameter of 1.1 mm
• Pin length of 6 mm

The RS PRO Insulated crimp bootlace ferrule create a reliable electrical connection without the need for screws or spring clamps. Ferrules are a safe and reliable method of wiring, with no risk of over-tightening screws or shorting the circuit. They also provide strain relief for the wires and ensure that all the wires can be smoothly inserted into the connector, without any of them getting loose.

Violet colour
One entry
Nylon insulation material

Small Pack Size

Per Unit, RS stock no: 178-7280

Large Pack Size

RS stock no: 270-7485

RS PRO Datasheet

RS PRO Guide UK
