RS PRO Insulated Crimp Bootlace Ferrule, 12mm Pin Length, 2mm Pin Diameter, 1.5mm² Wire Size, Black, Наконечники

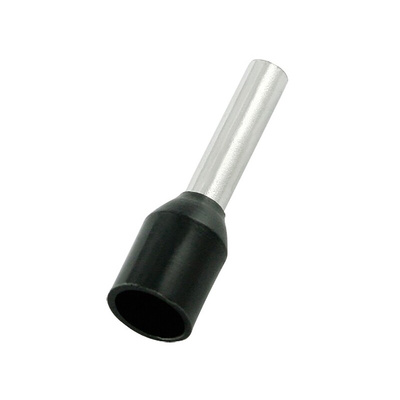

RS PRO Insulated Crimp Bootlace Ferrule, 12 mm Pin Length, 2 mm Pin Diameter, 1.5 mm² Wire Size, Black

This crimp bootlace ferrule by RS PRO will help you to insulate your stranded wires. Its metal tube and black insulating collar compress the wire to secure a tight connection and to protect the wire itself from wear. The copper tube terminal inside the unit ensures the connection remains reliable over time.
The lightweight nylon collar crimps onto a wire up to 1.5 mm in size and stops power from escaping out of gaps, which will increase the efficiency of your appliance. The nylon material is also tough enough to withstand any abrasion or buildups of heat that may occur outside the wire.
The tin-plated treatment creates a smooth surface that protects the connection from corrosion, so you know it'll stay working for longer. Use this ferrule for your switching cabinets, function units or clamp connectors to minimise interference and damage.

Features and Benefits

• Black colour
• Nylon insulation material
• Maximum wire size of 16 AWG (American Wire Gauge)
• Maximum wire size (mm²) of 1.5 mm²
• One entry
• Overall length of 18 mm
• Pin diameter of 2 mm
• Pin length of 12 mm

The RS PRO Insulated crimp bootlace ferrule create a reliable electrical connection without the need for screws or spring clamps. Ferrules are a safe and reliable method of wiring, with no risk of over-tightening screws or shorting the circuit. They also provide strain relief for the wires and ensure that all the wires can be smoothly inserted into the connector, without any of them getting loose.

Black colour
One entry
Nylon insulation material

Small Pack Size

Per Unit, RS stock no: 178-7312

Large Pack Size

RS stock no: 270-7510

RS PRO Datasheet
