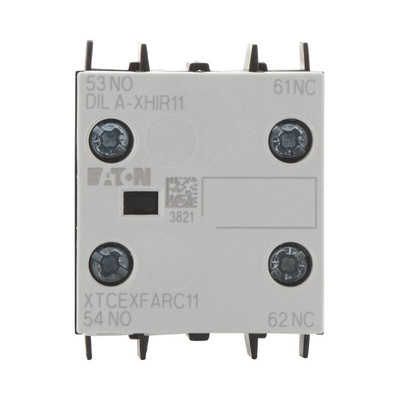

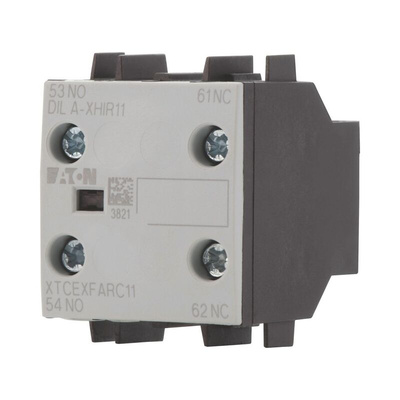

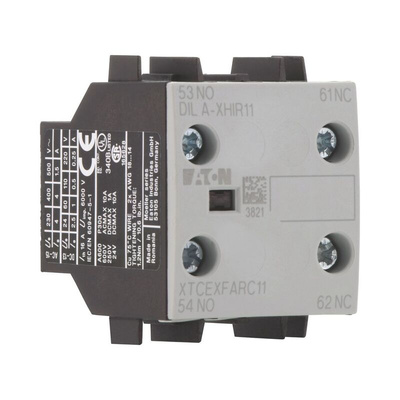

110140 DILA-XHIR11, Eaton Auxiliary Contact, 2 Contact, 1NC + 1NO, Front Mount

Eaton Auxiliary Contact, 690V Rated Insulation Voltage, 6000V AC Rated Impulse Withstand Voltage - DILA Series - 110140 DILA-XHIR11

Need to boost the functionality of your contactors and relays? Try on this auxiliary contact from Eaton for size. It has a normal state configuration of 1NC and 1NO, so it's ideal for functions such as indicating the on/off status of the main relay. Thanks to the long electrical lifespan of 1.3 million cycles, you can rely on this small but mighty piece of kit to last. Use it to link up push button controllers, electric motors and other control applications typical in manufacturing, processing and automation systems.

Features & Benefits

• Screw terminals ensure quick and easy installation
• IP20 rating indicates it's touchproof, to allow for safe handling
• Performs well in temperatures between -25°C and +60°C to suit varying settings

Which contactors work with this product?

This accessory is a match made in heaven for DILA (493-0551) and several DILM-series (240-2838) contactors.

What do NO and NC mean?

NO stands for normally open, and NC means normally closed. This means the accessory connects to one system that's usually running until you shut it off and one that's typically turned off until you switch it on.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILA-XHIR11

Instruction Sheet - DILA/DILM Series

Catalogue - Motor Starters, Contactors
