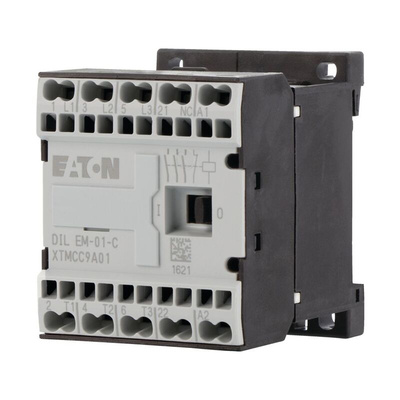

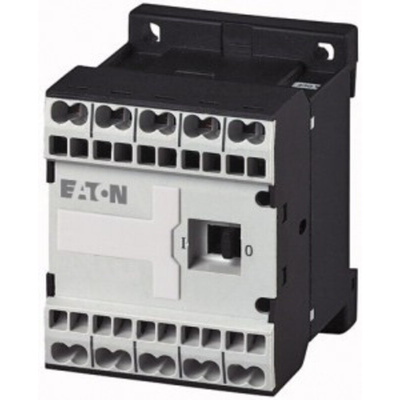

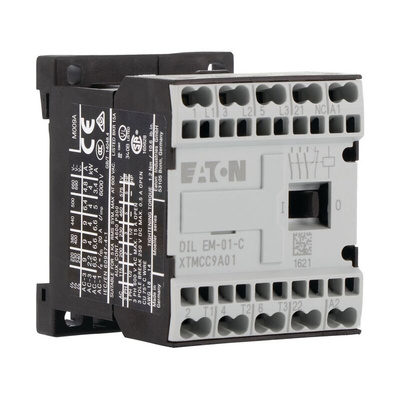

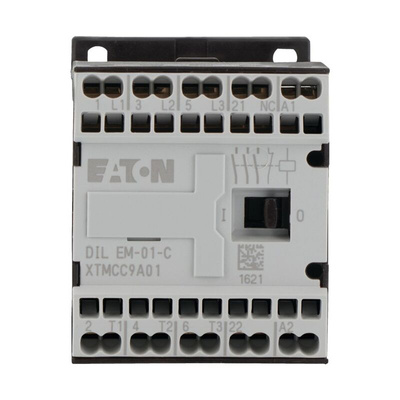

230167 DILEM-01-G-C(24VDC), Eaton Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 690V AC Rated Insulation Voltage, 90A Rated Breaking Capacity at 380/400V - DILEM Series - 230167 DILEM-01-G-C(24VDC)

Need hands-free switching performance? Put this 3-pole contactor from Eaton in charge of turning your lights, motors and HVAC systems on and off. Its space-saving design, with dimensions of 54 (L) x 45 (W) x 58mm (H), means it fits easily onto a DIN rail. To assure you that the unit's safe to handle without the risk of a shock, it comes with an IP20 rating. Built-in shock resistance ensures the unit takes bumps and vibrations in its stride to help prevent accidental disconnections.

Features & Benefits

• DIN-rail compatibility for fast tool-free mounting
• 4kW power rating for energy efficiency
• Reliable performance in operating temperatures between -25°C and +50°C

Does this contactor have an auxiliary contact?

Yes, the unit integrates an auxiliary contact to help with electrical safety by signalling faults during switching.

What kind of terminals does the contactor have?

This device has spring-loaded terminals to keep conductors firmly in place, so there's minimal chance of accidental disconnection.

Is it easy to reset this contactor?

Yes, the product has an easy-to-use toggle switch to clearly indicate the 'on' or 'off' contact positions.

Note

Eaton formerly known as Moeller

Datasheet

Datasheet

Instruction Sheet - DILEM - 01

Catalogue - Motor Starter, Protector
