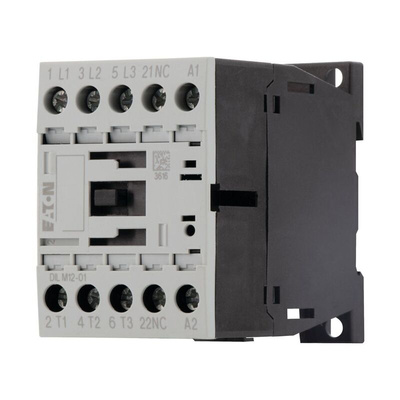

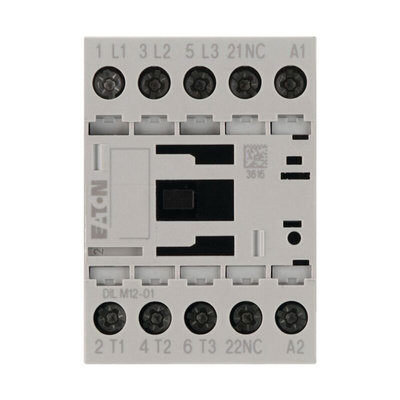

276869 DILM12-01(24V50/60HZ), Eaton Contactor, 24 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 3 Poles, 690V AC Rated Insulation Voltage - DILM Series - 276869 DILM12-01(24V50/60HZ)

Looking for a safe way to handle the switching of your industrial motors? Reach for this contactor from Eaton. You can file it under the AC-1, AC-3 and AC-4 utilisation categories, so it's a jack of many trades. Use it to take care of motor operations including starting, reversing, inching and shutting off during operation. Thanks to a 5.5kW power rating, this contactor is just the thing for heavy-duty applications. Compact dimensions of 68 (L) x 45 (W) x 117mm (D) make it a space-efficient choice for tight setups. You'll find it commonly used in the transportation industry.

Features & Benefits

• 8kV rated impulse withstand voltage assures you it can handle power surges without suffering damage
• Accommodates wire sizes between 18 and 14AWG for flexibility
• IP20 rating shows that it withstands objects larger than 12mm, so it's finger-proof and back-of-hand-proof
• Copes with a wide temperature range between -25°C and +60°C
• Light weight of 240g puts minimal pressure on your DIN rail

How durable is this contactor?

This unit has a mechanical lifespan of 10 million operating cycles, so you can rely on it for long-term performance.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILM12-01(24V50/60HZ)

Instruction Sheet - DILM12

Catalogue - Motors Starters, Contactors
