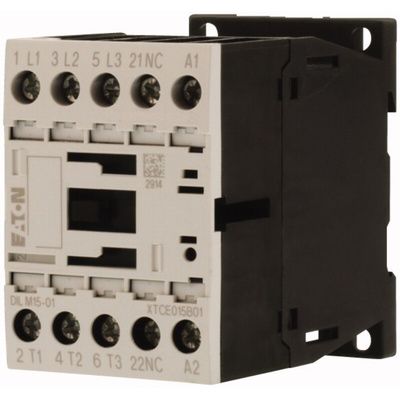

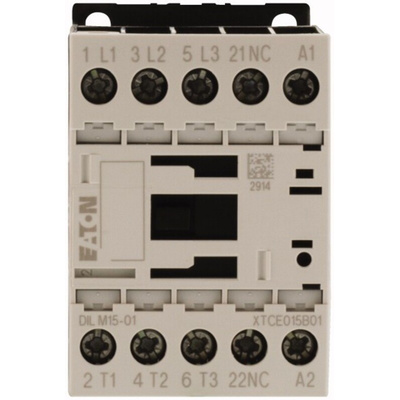

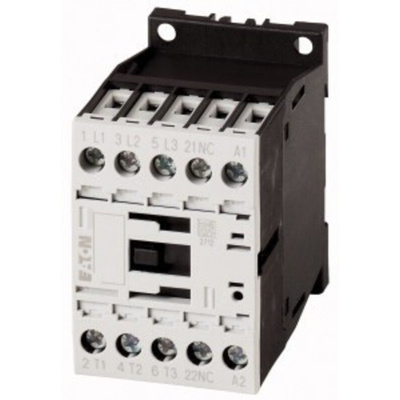

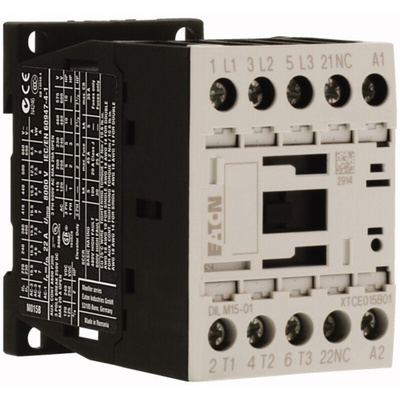

290108 DILM15-01(24VDC), Eaton Contactor, 24 V dc Coil, 3-Pole, 15 A, 7.5 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 400V AC Contact Voltage Rating, DIN Rail Mounting - DILM15 Series - 290108 DILM15-01(24VDC)

Make or break the power supply to your devices with this contactor from Eaton. Its rapidly operating contacts help with arc suppression, which means it can interrupt high currents with minimal damage. A mechanical lifespan of up to 6 million operations means you get a long service life, even in demanding environments. As the unit's protected against overvoltage, there's minimal chance of electrical surges causing damage. For convenience, you can control it remotely. It's suitable to use as part of a motor starter, or as a power-control device for heating and lighting systems.

Features & Benefits

• Meets IEC/EN 60068-2-27 standards for mechanical shock resistance when table mounted
• IP20-rated enclosure that's protected against human touch and objects larger than 12mm
• Screw terminals accept both solid and stranded conductors, so you have a choice of wiring options
• Needs minimal space in a control panel, thanks to its compact dimensions of 68 (L) x 45 (W) x 117mm (D)

What's the power rating of this contactor?

This device has a high power rating of 7.5kW, making it compatible with demanding systems.

Note

Eaton formerly known as Moeller

DILM15-01(24VDC) Datasheet

Instruction Sheet - Contactors (IL03407013Z)

Catalogue - Motor Starters
