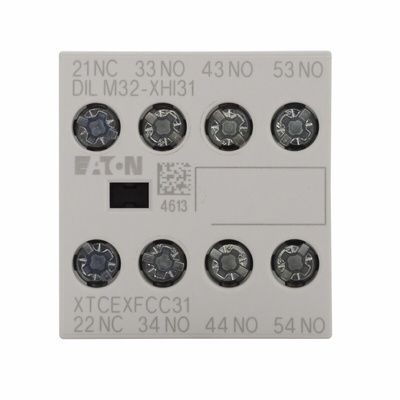

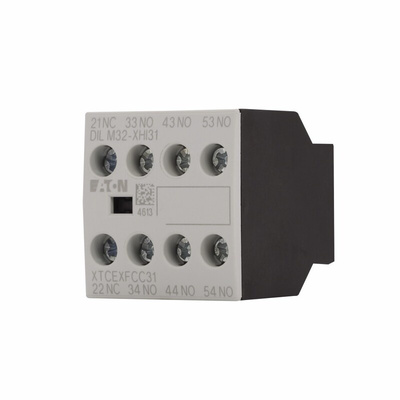

106112 DILM32-XHI31, Eaton Auxiliary Contact, 4 Contact, 1NC + 3NO, Front Mount, DILM

Eaton Auxiliary Contact, 10A Switching Capacity, 6A Current Rating - DILM Series - DILM32-XHI31

Too many devices and not enough contacts? Boost your system's capabilities by adding this auxiliary contact from Eaton. It works with power contactors and lets you connect four peripherals at once. The 1NC connection is ideal for linking up support equipment, such as fans that always need to be on. Use the 3NO ports for user-supervised setups like pumps or lights. Rest assured, the high 6000V AC rated impulse withstand voltage means the unit withstands substantial energy spikes without suffering damage, so you can be sure of its longevity.

Features & Benefits

• Screw connection style speeds up wiring and achieves a solid fix
• IP20 rating indicates it's touch-proof for safe handling
• Handles up to 7g of shock for use in vibrating conditions
• Performs reliably in a temperature range from -25°C to +60°C
• Small dimensions of 36 (W) x 45 (L) x 38mm (H) take up minimal space

What contactors does this accessory work with?

The auxiliary contact is a straightforward way to boost the capacity of DILM-series contactors (such as 743-4895 and 743-4908).

How long will this product last?

It has a 1.3 million electrical cycle lifespan, so you can depend on its long-term performance.

Note

Eaton formerly known as Moeller
