276733 DILM9-01(230V50/60HZ), Eaton Contactor, 230 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac, Контактор

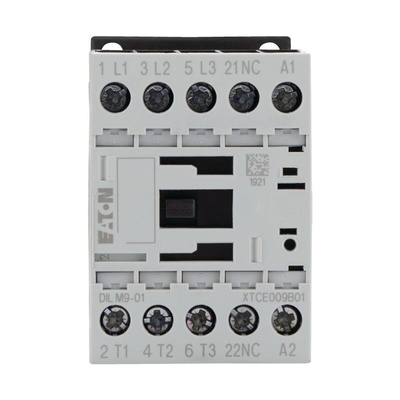

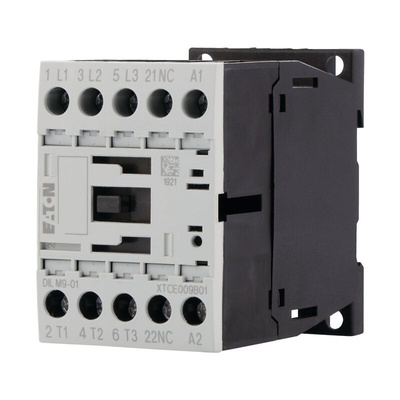

Eaton Contactor, Screw Terminals, AC Operation - DILM Series - 276733 DILM9-01(230V50/60HZ)

Regulate the flow of electricity to your industrial equipment using this contactor from Eaton. It has a three-pole design, for three-phase or multi-circuit control in a single device. Thanks to the screw terminals, installation is quick and easy without the need for anything more complex than a screwdriver. The product's sturdy thermoplastic housing resists impact and abrasion, so you can count on it in harsh settings. You'll typically find contactors of this type in power distribution systems and lighting panels.

Features & Benefits

• Low heat dissipation of 0.2W per pole makes this an energy-efficient product
• Rated impulse withstand voltage of 8kV AC means it handles voltage surges without suffering damage
• Light weight of 240g minimises strain on your equipment
• Coil voltage rating of 230V AC makes it a reliable choice for low-voltage systems
• IP20 rating indicates it's touch-proof and protected from objects bigger than 12mm

How secure is this component?

When tightened to a torque of 1.2Nm, you achieve a secure attachment that will remain stable even in vibrating systems.

What wire sizes can this contactor accommodate?

This unit accepts solid or stranded wires sized between 18 and 10AWG, so it's a versatile workmate.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILM9-01(230V50/60HZ)

Instruction Sheet - DILA/DILM Series

Catalogue - Switching and Protecting Motors
