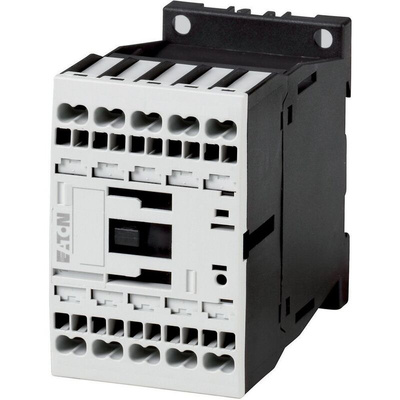

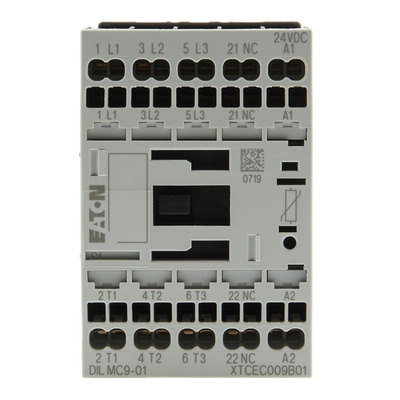

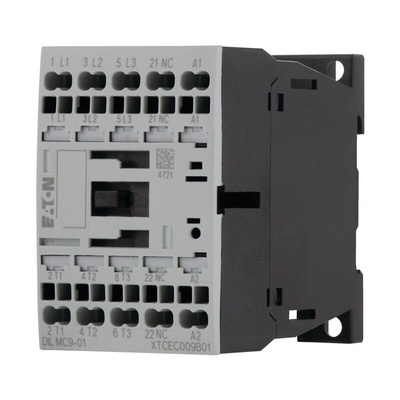

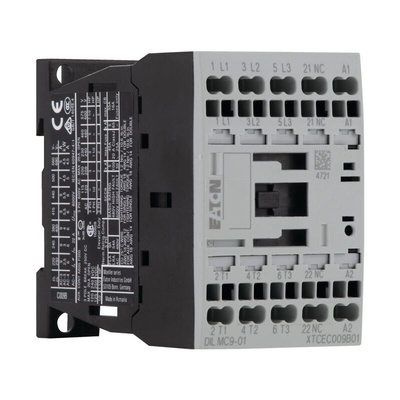

277500 DILMC9-01(24VDC), Eaton Contactor, 24 V dc Coil, 3-Pole, 12 A, 4 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 90A Rated Breaking Capacity at 380/400V, 286g Weight - DILM Series - 277500 DILMC9-01(24VDC)

Having trouble keeping up with the frequent switching demands of your applications? Reach for this contactor from Eaton. It's a reliable option for flicking electric motors and lighting systems on and off as it delivers up to 9000 mechanical operations per hour. You can touch it without risking a shock, thanks to its IP20-rated housing. The unit handles challenging conditions without losing its cool thanks to an operating temperature range between -25°C and +60°C.

Features & Benefits

• Electromagnetic resistance helps prevent signal interference to boost reliability
• Slimline dimensions of 57.2 (L) x 68 (W) x 125mm (D) make this a space-saving solution

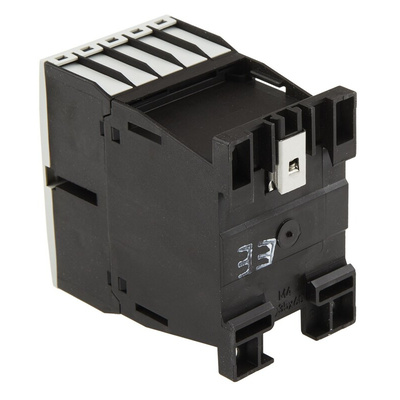

• DIN-rail mounting for quick and easy installation

How many circuits does the contactor handle?

The 3-pole design means this device can accommodate up to three circuits to help you streamline your setup.

How do I terminate wires in this contactor?

The device uses cage clamp technology for wire termination. This means you simply have to insert your solid or stranded conductor while keeping the clamp open with a tool such as a screwdriver. When done, simply remove the tool. The spring releases to firmly clamp the wire in place.

Note

Eaton formerly known as Moeller

Datasheet - Eaton DILMC9-01(24VDC)

Installation Sheet - 277500 DILMC9-01(24VDC)

Catalogue - Motor Starters, Contractors
