RS PRO Insulated Crimp Bootlace Ferrule, 10mm Pin Length, 3.3mm Pin Diameter, 2 x 2.5mm² Wire Size, Grey, Наконечники

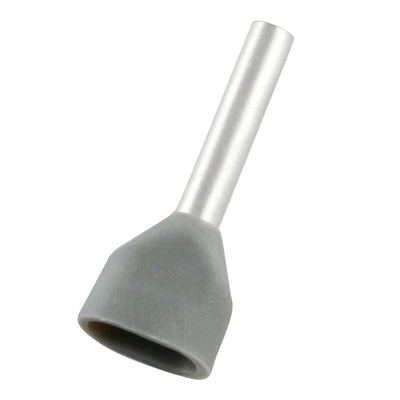

RS PRO Insulated Crimp Bootlace Ferrule, 10 mm Pin Length, 3.3 mm Pin Diameter, 2 x 2.5 mm² Wire Size, Grey

This crimp bootlace ferrule from RS PRO can be used to end the connection of a range of different electrical installations. It's suitable for two wires up to 2.5 mm in size. The copper tube terminal keeps the wire's electrical flow stable as it passes through the connector.
The wires clamp tightly in place within the metal tube and the grey insulating collar of the ferrule protects them from wear and interference. The collar is made from a durable nylon material that's resistant to friction and abrasion, so it won't wear down over time. The unit is lightweight so you don't have to worry about stretching the wires or putting extra stress on the connection.
The tube is also plated in a tin treatment that stops corrosion and rust taking hold, so your component will last for longer. This ferrule is compatible with a variety of electrical products, from function units to switching cabinets to clamp connectors.

Features and Benefits

• Grey colour
• Nylon insulation material
• Maximum wire size of 2 x 14 AWG (American Wire Gauge)
• Maximum wire size of 2 x 2.5 mm²
• One entry
• Overall length of 18.5 mm
• Pin diameter of 3.3 mm
• Pin length of 10 mm

The RS PRO Insulated crimp bootlace ferrule twin cord end terminal has overall length of 18.5mm with 14AWG of wire size and grey in colour.

Terminal material: Copper
Maximum Temperature Range: 105°C

RS PRO Datasheet
