RS PRO PTFE Clear Cable Sleeve, 3.05mm Diameter, Кабельная муфта

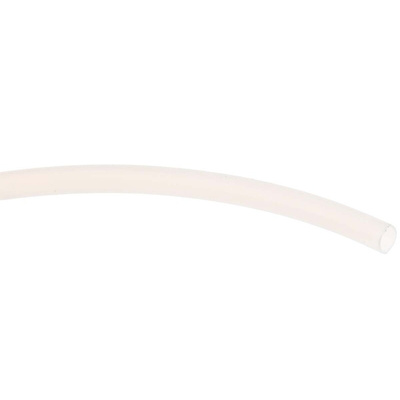

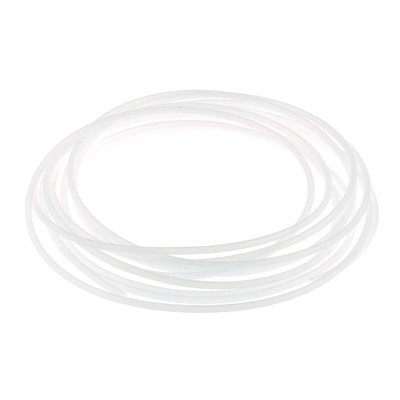

RS PRO PTFE Clear Protective Sleeving, 3.05 mm Diameter

These cable sleeves from our trusted RS PRO range provide electrical insulation, mechanical protection and abrasion resistance for wiring. They also protect cables in harsh environments.

These flexible, clear, protective sleeves have a diameter of 3.05 mm and are made from PTFE (polytetrafluoroethylene). PTFE is a particularly tough material as it resists corrosion and contamination and is highly heat-resistant. You'll find it in a variety of applications, including HVAC (heating, ventilation and air conditioning), manufacturing and food processing. It's also an excellent insulator and these cable sleeves have a dielectric strength of 45 kV/mm.

The sleeving can be used at temperatures from -65°C to +260°C and has a melting point of +327°C. It's highly flame retardant, meaning that cables remain protected in the event of a fire, and halogen-free, so it won't release toxic gas. With RoHC compliance, it doesn't contain harsh chemicals.

Features and Benefits

• Inner diameter of 3.05 mm
• Wall thickness of 0.38 mm
• Clear colour
• PTFE material so it resists corrosion, contamination and is heat-resistant
• Operational temperature from -65°C to +260°C
• Flame retardant
• Food safe
• Dielectric strength of 45 kV/mm
• RoHS compliant so no hazardous materials
• Complies with ANSI/ESD and BS EN Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
