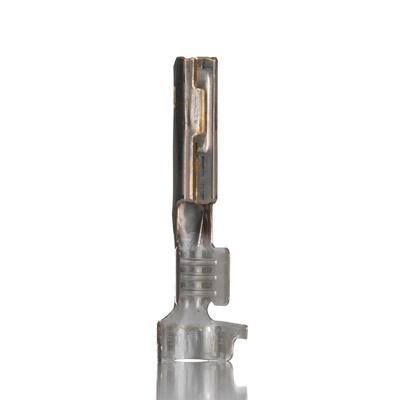

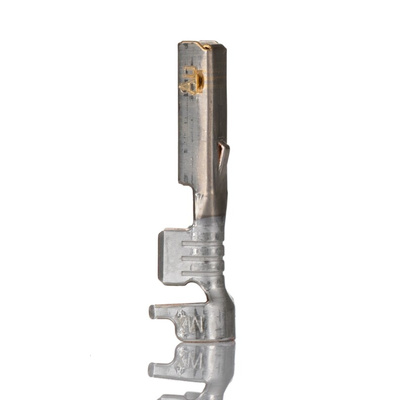

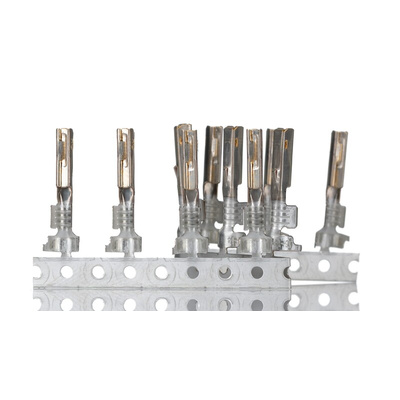

19420-0003, Molex 19420 Series Female Crimp Terminal, Crimp or Compression Termination, 16AWG Min, 14AWG Max, Контакты

Molex Crimp Terminal, Accommodates 16 to 14AWG, Gold and Tin Contact Plating - 19420 Series - 19420-0003

Make a solid link between a cable and your circuit board with this crimp terminal from Molex. It lets you join stranded wires to its single contact via compression, so provides a reliable alternative to soldering. The high-performance alloy contact gives you the reliable conductivity you need when linking leads to PCB headers. Gold plating increases its resistance to wear and corrosive conditions, so you can rest assured it's in it for the long haul.

Features & Benefits

• Current rating of 18A for use in heavy-duty applications
• Low-halogen construction reduces the risk of environmental pollution in a fire
• Crimp termination is quick and efficient

Applications

• Laptop and desktop computers
• Industrial automation
• Process and packaging industry

Is this terminal flame-resistant?

Yes, this crimp terminal will stop burning in 10 seconds or less in the event of a fire to help reduce the spread of flames.

Datasheet

Line Drawing - 19420-0003
