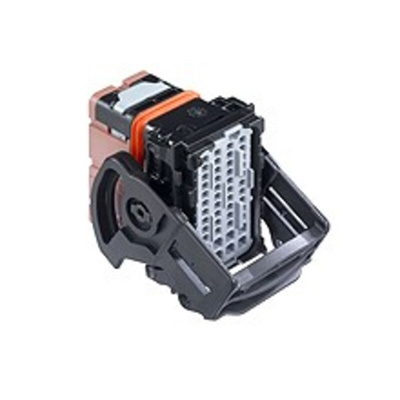

64320-1318, Molex Automotive Connector Socket 48 Way, Crimp Termination

Molex Grey Automotive Connector Socket, 48 Contacts, 4 Rows - 64320 Series - 64320-1318

Use this sealed, high-density connecting system from Molex for powertrain and body electronics applications in cars, trucks and buses. It's a modular 48-contact connector that won't mate with an incompatible header, making wire-to-board installation straightforward. The unit comes with self-tapping screws that eliminate the need for drilling and speed up assembly. Thanks to a wide operating temperature range of -40°C to +125°C, it withstands environmental extremes, so is appropriate for motor controls and engine compartments.

• Rugged construction to withstand extreme vibration
• Compact dimensions of 40.5 (height) x 35.25 (width) x 53.2mm (depth) for use in tight spaces
• Crimp termination method ensures secure connections

Applications

• Engine control units
• Automatic gearboxes
• Construction equipment
• Lighting control systems

Is this connector waterproof?

This automotive socket has an IP67 rating, so it's dust-tight and waterproof.

Datasheet
