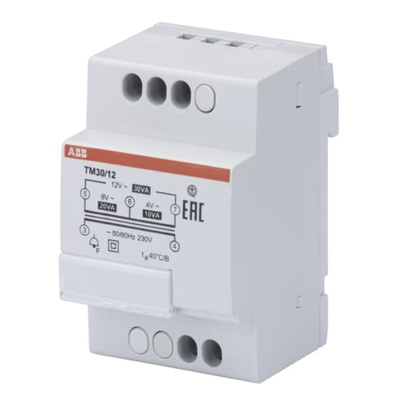

2CSM228755R0802 TM30/12, ABB 30W DIN Rail Mount Transformer, EN 61558, 230V Primary, 4 V ac, 8 V ac, 12 V ac Secondary

ABB DIN Rail Transformer, 30W Output Power, 50/60Hz Rated Frequency - TM Series - 2CSM228755R0802 TM30/12

Looking for a trusty fail-safe to protect your electrical fittings? Go for this DIN rail transformer from ABB. It steps down a 230V supply to deliver between 4 and 12V of AC output that's just right for low-voltage signalling devices like LED lights. Double insulation between the unit's primary and secondary windings reduces the risk of fire outbreaks caused by short circuits, so you can rest assured that you're in safe hands. You don't need complex tools to link cables to the transformer, as screw terminals make the job quick and simple.

Features & Benefits

• Light weight of 450g puts minimal strain on your DIN rail
• IP20 rating shows that it's finger-safe as it withstands objects larger than 12mm in size
• Low power loss of 3W indicates it's an energy-efficient component
• Compact dimensions of 65 (L) x 52.5 (W) x 85mm (H) for space-efficient installation in busy setups

Applications

• Residential buildings
• Schools and colleges
• Recording studios

What's the operating temperature range of this transformer?

This unit performs at its best in a temperature range between -10°C and +40°C, making it suitable for residential and light-commercial applications.

Datasheet

Brochure - Modular Transformer Range

Catalogue - Command & Signaling
