RS PRO Pure Sine Wave 300W Power Inverter, 24V Input, 230V Output, Инвертор

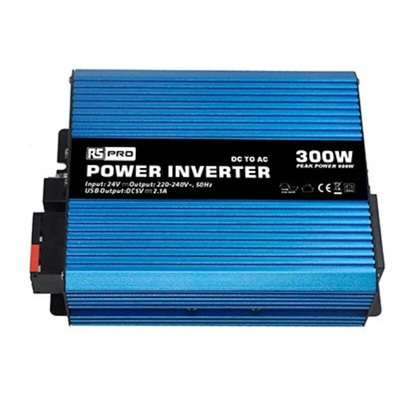

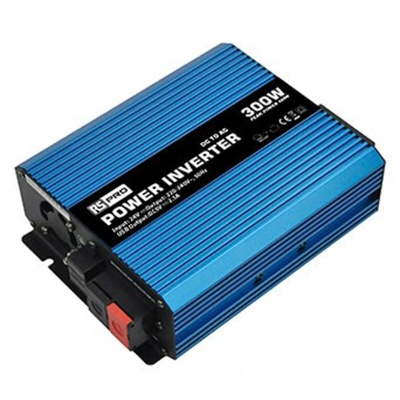

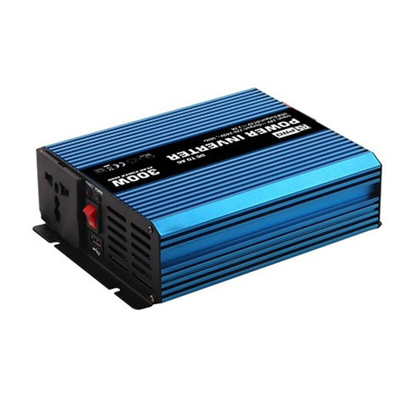

RS PRO 300 W Fixed Installation DC-AC Power Inverter, 24 V/230 V

This compact 300 W DC to AC power inverter from RS PRO is designed to be connected to a car battery for the charging of appliances on-the-go or in emergencies. It converts DC (direct current) voltage to alternating current (AC), which is how mains electricity is supplied in homes and other buildings. Car batteries produce DC voltage, which is incompatible with most household appliances.

This inverter generates pure sine wave – a smooth AC that works best with delicate electronics. It's lightweight, easy to operate and comes in a hardwearing anodised aluminium case. A soft start mechanism limits the inrush current to prevent sudden jerks in operation and prevent any sudden stress to machinery.

The product's efficiency rating of over 90% means it loses very little heat during operation, while built-in controls prevent overheating and over-voltage. It's been rigorously tested to meet RS PRO's stringent quality standards.

Features and Benefits

• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Continuous power output of 300 W
• Intermittent power output of 350 W
• Surge power of 600 W
• Universal output connection type
• Efficiency rating over 90%
• Mean time between failures of 50,000 h
• Output current of 2.61 A
• Maximum input of 25 A
• Length of 204.2 mm
• Width of 150 mm
• Depth of 58 mm
• Weight of 1.4 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
