RS PRO Pure Sine Wave 600W Power Inverter, 12V Input, 230V Output, Инвертор

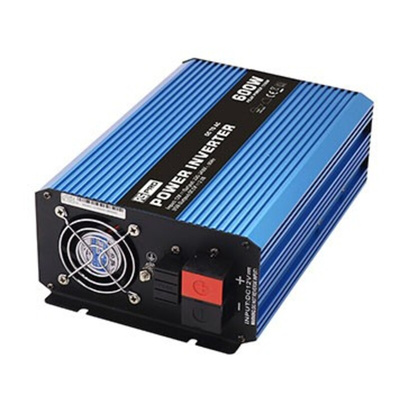

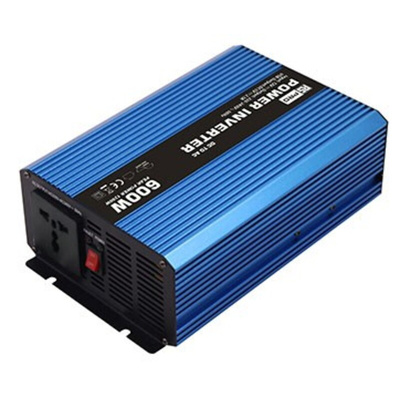

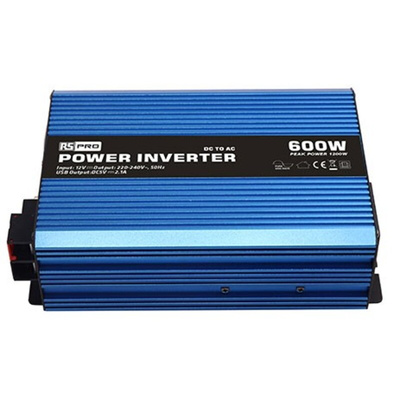

RS PRO 600 W Fixed Installation DC-AC Power Inverter, 12 V / 230 V

This 600 W fixed installation DC to AC power inverter is a compact electrical device that can be attached to a car battery and used to charge appliances. The inverter converts the direct current (DC) from the car battery to an AC power output, which is the current found in standard wall outlets – an ideal solution when you're on the road.

This inverter generates pure sine wave – a gentle form of AC that’s best suited for sensitive electronics like laptops, digital clocks and smart home devices. It comes encased in durable anodised aluminium, which provides good heat dissipation. Installation is easy thanks to a sturdy chassis mount.

This product is protected from over- and under-voltage, reverse polarity and short circuiting, as well as overheating and overload. It meets a range of European standards, including EN 60950-1 on safety in information technology equipment.

Features and Benefits

• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 12 V
• Output voltage of 230 V
• Continuous power output of 600 W
• Intermittent power output of 650 W
• Surge power of 1200 W
• Universal output connection type
• Output current of 5.22 A
• Maximum input current of 100 A
• Efficiency rating over 90%
• Mean time between failures of 50,000 h
• Length of 249.2 mm
• Width of 150 mm
• Depth of 77.7 mm
• Weight of 2 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ± 3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
