RS PRO Pure Sine Wave 1000W Power Inverter, 24V Input, 230V Output, Инвертор

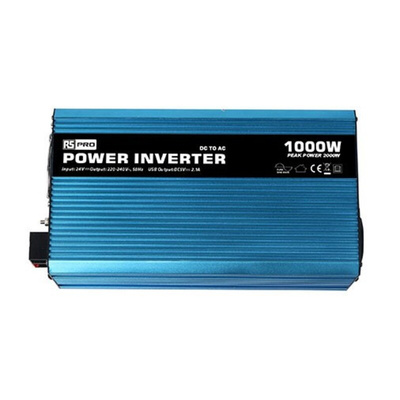

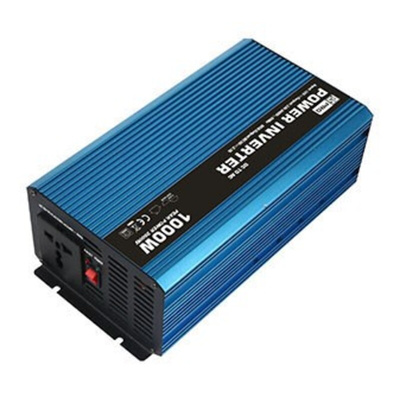

RS PRO 1000 W Fixed Installation DC-AC Power Inverter, 24 V/230 V

The RS PRO fixed installation DC to AC power inverter is the ideal gadget for charging appliances when all you have available is a car battery. It works on the principle that car batteries generate direct current (DC), which is incompatible with domestic appliances, as these run on alternating current (AC). Inverters are used to power devices on the road.

The transformer produces pure sine wave, which is a smoothly varying AC that works best with delicate electronics like smart devices. It has a soft-start mechanism to limit the inrush current, helping to prevent sudden stress on the mechanical parts.

This inverter is easy to fit onto a car battery thanks to its straightforward chassis mount and comes in a durable anodised aluminium case for good heat dissipation. Built to exacting manufacturing standards, it's protected from overheating, short-circuiting and overload.

Features and Benefits

• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Continuous power output of 1000 W
• Intermittent power output of 1100 W
• Surge power of 200 W
• Universal output connection type
• Efficiency rating over 90%
• Output current of 8.7 A
• Maximum input current of 83.3 A
• Mean time between failures of 50,000 h
• Length of 302.2 mm
• Width of 150 mm
• Depth of 97.4 mm
• Weight of 3 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
