RS PRO Pure Sine Wave 3000W Power Inverter, 24V Input, 230V Output, Инвертор

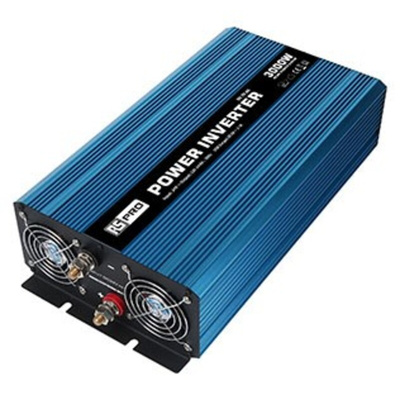

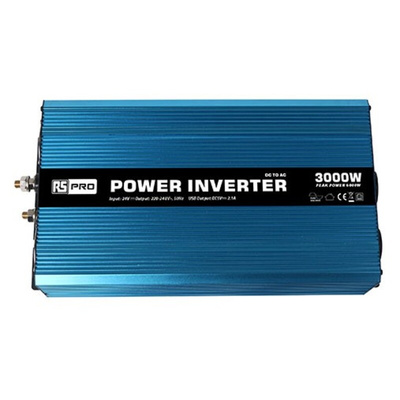

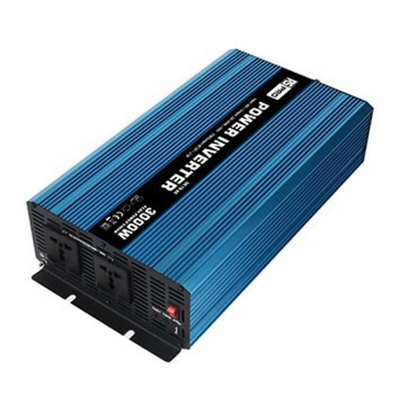

3000 W Fixed Installation DC-AC Power Inverter, 24 V / 230 V

This fixed installation DC-AC power adapter from RS PRO converts direct current (DC) to the alternating current (AC) needed to run many electrical appliances. It's typically used in applications such as power grids and uninterruptible power supplies, as well as refrigeration compressors.

The power inverter runs on an input voltage of 24 V and outputs 3 kW of power as a pure sine wave, which is optimal for many appliances. It's compact and lightweight and is also housed in a durable anodised aluminium case that ensures good heat dissipation. The soft start mechanism limits the inrush current to ensure smooth operation and prevent sudden stress on mechanical parts.

Part of the tried and tested RS PRO range, this adapter features protection from over- and under-voltage, short circuiting and reverse polarity, as well as overheating and overload. It also conforms to the EN 60950-1 standard on safety in information technology equipment.

Features and Benefits

• Fixed installation DC-AC power inverter
• Chassis mounting
• Universal output connection type
• Two output connections
• Single-phase output
• 5 V, 2.1 A USB port
• Universal UK/Euro output socket.
• Output voltage of 230 V
• Input voltage of 24 V
• Continuous power output of 3,000 W
• Intermittent power output of 3,100 W
• Surge power output of 6,000 W
• Pure sine wave output is optimal for many electrical products
• Output current of 26.9 A
• Output frequency of 50 Hz ±3
• Maximum operating temperature of +50˚C
• Minimum operating temperature of -20˚C
• >
90% efficiency
• Length of 488 mm
• Width of 230 mm
• Depth of 107.7 mm
• Weight of 7,710 kg
• Mean time between failures of 50,000 h
• Indicator lights show when the adapter is working properly
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
