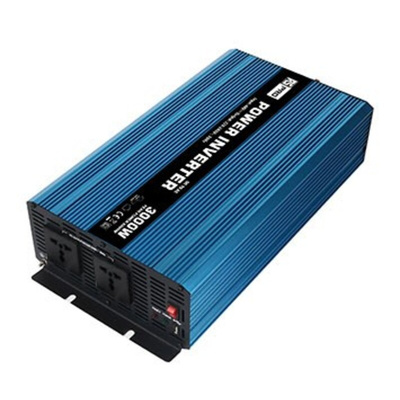

RS PRO Pure Sine Wave 3000W Power Inverter, 48V Input, 230V Output, Инвертор

3000 W Fixed Installation DC-AC Power Inverter, 48 V/230 V

This 3000 W fixed installation DC to AC power inverter from RS PRO is a sturdy electrical device that joins to a car battery to charge a wide range of appliances.

Mains electricity is supplied as alternating current (AC), so any device that plugs into a wall uses AC. Household devices can also be charged using car batteries, which produce direct current (DC), provided you have a power inverter on board.

This inverter works especially well with laptops and smart devices, thanks to its pure sine wave voltage output. It has a simple chassis mount that makes it easy to install and an efficiency rating of over 90%.

The product comes in a durable anodised aluminium case, with built-in protections against overheating, over-voltage and short-circuiting. Part of our tried and tested RS PRO range, it has been stringently tested. It also conforms to the standard EN 61000-6-3 on electromagnetic compatibility.

Features and Benefits

• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• Two output connections
• Single-phase electrical output
• Input voltage of 48 V
• Output voltage of 230 V
• Continuous power output of 3000 W
• Intermittent power output of 3100 W
• Surge power of 6000 W
• Universal output connection type
• Efficiency rating over 90%
• Output current of 26.9 A
• Maximum input current of 125 A
• Mean time between failures of 50,000 h
• Length of 488 mm
• Width of 230 mm
• Depth of 107.7 mm
• Weight of 7.7 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
