RS PRO Pure Sine Wave 4000W Power Inverter, 24V Input, 230V Output, Инвертор

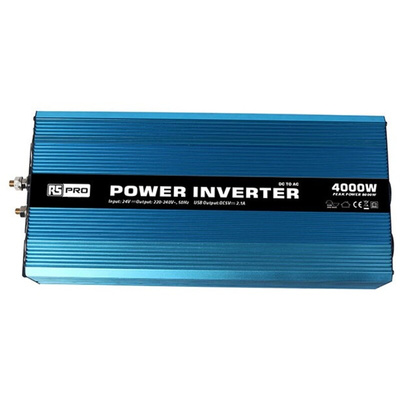

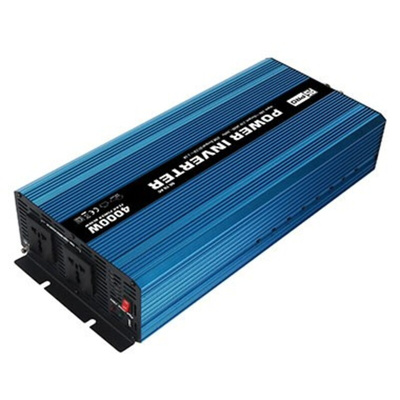

RS PRO 4000 W Fixed Installation DC-AC Power Inverter, 24 V / 230 V

Use this 4000 W fixed installation DC to AC power inverter from RS PRO to charge a range of appliances. The handy electronic device can be connected to car batteries for power on-the-go.

Power inverters take direct current (DC) from your car battery and turn it into alternating current (AC), which is the electricity you find in wall outlets. Most devices run on AC, so power inverters are a great way to charge appliances from a car or mobile home.

This inverter works best with sensitive equipment like computers and radios, as it produces a smooth AC known as pure sine wave. It's compact, lightweight and simple to operate. The inverter also has a durable anodised aluminium body for optimal heat dissipation.

This quality product meets a number of European standards, including EN 60950-1 for safe information technology equipment. It also has built-in protections against overheating, over-voltage and short-circuiting.

Features and Benefits

• DC-AC power inverter
• Chassis mounting
• Two output connections
• Single-phase electrical output
• Input voltage of 24 V
• Output voltage of 230 V
• Continuous output power of 4000 W
• Intermittent output power of 4100 W
• Surge power of 8000 W
• Universal output connection type
• Efficiency rating over 90%
• Output current of 34.78 A
• Maximum input current of 333.3 A
• Mean time between failures of 50,000 h
• Length of 543 mm
• Width of 230 mm
• Depth of 107.7 mm
• Weight of 9 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
