RS PRO DC-DC Converter, 12V dc/ 5A Output, 18 → 32 V dc Input, 60W, Chassis Mount, +50°C Max Temp -20°C Min Temp, Адаптер питания

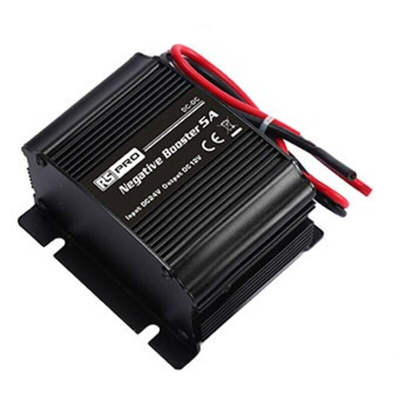

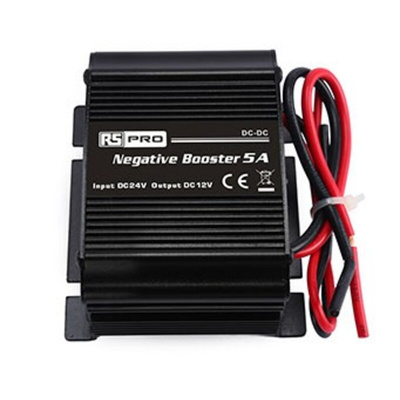

RS PRO 60 W Fixed Installation Car Power Adapter, 18 to 32 V DC/12 V DC

Looking for a way to safely reduce the voltage in your vehicle? This RS PRO car power adapter takes voltages between 18 and 32 V DC and reduces them to 12 V DC, protecting your equipment from overvoltage.
It comes with an anodised aluminium case for heat dissipation and durability. This adapter also offers protection from overcurrent, overheating and short circuits, so you can rest assured it's safe to use. The dual-colour LED makes it easy to check for power and failures, while its colour-coded wires mean installation is straightforward. This type of adapter is suitable for chassis mounting and is commonly used by mechanics and vehicle manufacturers.

Features and Benefits

• DC-DC power signal conversion
• Switch-mode regulator
• Continuous power output of 60 W
• Efficiency of >85%
• MTBF (mean time between failures) of 50000 h
• Output current of 5 A, input current (max) of 2.5 A
• Dimensions of 77 mm x 90 mm x 47 mm
• Weight 260 g
• Operating temperature -20°C to +50°C
• Output frequency range
