RS PRO DC-DC Converter, 12V dc/ 15A Output, 18 → 32 V dc Input, 180W, Chassis Mount, +50°C Max Temp -20°C Min, Адаптер питания

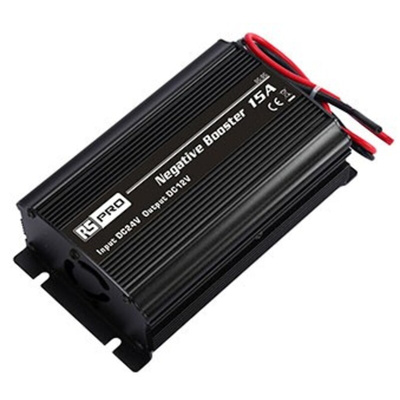

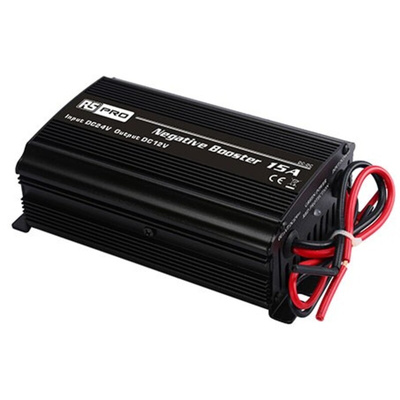

RS PRO 180 W Fixed Installation Car Power Adapter, 18 to 32 V DC/12 V DC

The RS PRO 180 W fixed installation car power adapter safely reduces DC-DC power in vehicles. Using a switch-mode regulator, it takes input voltages of 18-32 V DC and converts them to 12 V DC.
The adapter is protected by an aluminium case that's anodised to improve durability and heat dispersal. Colour-coded wires enable easy installation, while the dual-colour LED light makes identifying power status and failures simple.
This unit is fitted with protection against overcurrent, overvoltage, overheating and short-circuiting. It's used in the automotive industry to prevent damage to vehicles and electronic devices.

Features and Benefits

• Input voltage of 18 to 32 V DC
• Output voltage of 12 V DC
• Continuous power output of 180 W
• Efficiency >85%
• Mean time between failures (MTBF) is 50000 h
• Output current of 15 A
• Dimensions of 157 mm x 90 mm x 47 mm
• Weight of 495 g
• Operating temperature from -20°C to +50°C
• Output frequency range
