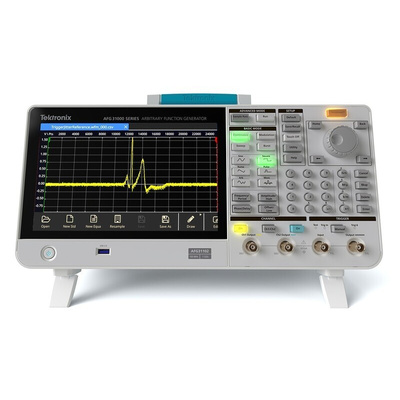

Tektronix AFG31101 Function Generator & Counter 100MHz (Sinewave) With RS Calibration, Генератор и счетчик функций

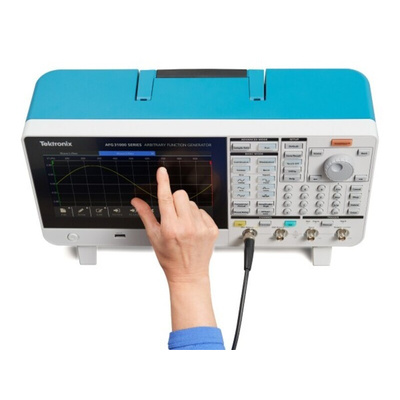

The AFG31000 Series is the best-in-class waveform generation platform designed for the most demanding expectations on performance and versatility, throughout the whole process of product realization. The 9-inch capacitive touch screen, built-in arbitrary waveform application, and patented InstaView™ technology bring unprecedented user experience for researchers and engineers, and enable them to focus on their job instead of learning how to use a tool.

1or 2 channel models
Output amplitude range 1 mVP-P to 10 VP-P into 50 Ω loads
Basic (DDS) mode:
25 MHz, 50 MHz, 100 MHz, 150 MHz or 250 MHz sine wave waveforms
250 MSa/s, 500 MSa/s, 1 GSa/s or 2 GSa/s Sampling rate
14-bit vertical resolution
Advanced (Sequence) mode:
Continuous mode (optional Sequence, Triggered and Gated modes)
16 Mpts arbitrary waveform memory on each channel (128 Mpts optional)
Up to 256 steps in sequence mode with loop, jump and wait events
