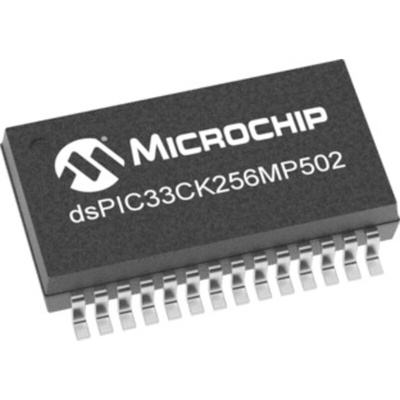

Microchip DSPIC33CK256MP502-I/SS, Microprocessor dsPIC 16bit 100MHz 28-Pin SSOP, Микропроцессор

Microchip Technology DSP Microcontroller

The Microchip Technology DsPIC33CH family type SSOP package, surface mount, 28-pin and 16-bit CMOS based DSP microcontroller has a voltage rating that ranges between 3V and 3.6V. It has 32Kbytes to 256K bytes program flash with ECC and 8K to 24K RAM. This enables the design of high-performance, precision motor control systems that are more energy-efficient. This microprocessor is used to control BLDC, PMSM, ACIM, SR and stepper motors quieter in operation and also provides extended motor life.

Features and Benefits

• 8-channel high-speed PWMs with 250ps resolution
• Code efficient (C and Assembly) CPU architecture designed
• Communication interface UART, SPI/I2S and CAN bus
• Dual 40-bit fixed-point accumulators (ACC) for DSP operations
• Fast 6 cycle divide
• Four DMA channels
• Four sets of interrupt context selected registers and accumulators per core for fast interrupt
• Integrated power-on reset and brown-out reset
• Modified Harvard architecture with 16-bit data and 24-bit instructions
• Nine MCCP/SCCP modules which Include timer, capture/compare and PWM
• One general-purpose 16-bit timer
• Operating frequency is 100MHz
• Operating temperature ranges between -40°C and 85°C
• Safety features are DMT, ECC, WDT, CRC, Code Guard, ICSP, MBIST and fail-safe clock monitoring safety features
• Single-cycle MAC/MPY with dual data fetch and result write-back
• Support for DMX, LIN/J2602 protocols and IrDA
• Three 12-bit DAC/Analog comparator modules
• Three low power modes: Sleep, Idle and Doze
• Zero overhead looping

Certifications

• AEC-Q100 REVG
• IEC 60730
