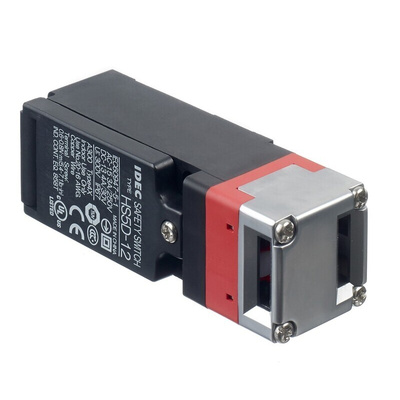

HS5D-12ZRN, Idec HS5D Safety Interlock Switch, Metal (Head), 1NO/2NC, Interlock Lock, Выключатель

Idec Switch

The Idec HS5D series safety interlock switch has three contact types with dual enabling contacts and a monitor contact. The head removal detection function turns off the main circuit when the head of the switch is removed.

Features and Benefits

• 1NO-2NC safety contacts
• Actuator is interchangeable with HS5E and HS5L
• Compact in size
• G1/2 connection type
• Head orientation can be rotated in eight different ways
• Interlock lock type
• M3 terminal screws for easy wiring
• No need of grounding due to double insulation structure
• Operating temperature ranges between -30°C and70°C

Applications

• Doors

Certifications

• CCC certified
• CE certified
• cUL listed
• EN ISO14119
• IEC60947-5-1
• IP67 rated
• KOSHA approved
• TUV

Datasheet
