HS5L-VA44M-G, Idec HS5L Safety Interlock Switch, 1NC/1NO + 1NC/1NO, Keyed, Spring Lock, Выключатель

Idec Switch

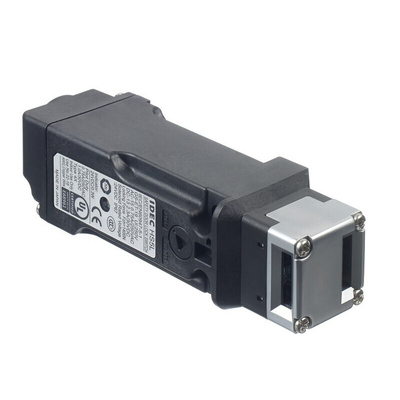

The Idec HS5L series solenoid interlock switch has a locking strength of 1400N and four contacts in a compact housing. It is designed to work in applications with limited mounting spaces such as small doors. This model is equipped with a manual lock release key and an LED indicator.

Features and Benefits

• 1NC-1NO (door monitor) and 1NC-1NO (lock monitor) safety contacts
• Compact in size
• Dual safety circuit and four-circuit independent outputs available
• Gold-plated contacts suitable for small loads
• Head orientation can be rotated in eight different ways
• LED illumination colour is green
• M20 connection type
• Operating temperature ranges between -25°C and 55°C
• Spring clamp terminal block prevents loosening of wires due to vibration
• Spring lock type

Applications

• Cutting
• Doors
• Pressing
• Rotating

Certifications

• CCC certified
• CE certified
• cUL listed
• EN ISO14119
• IP67 rated
• TUV
