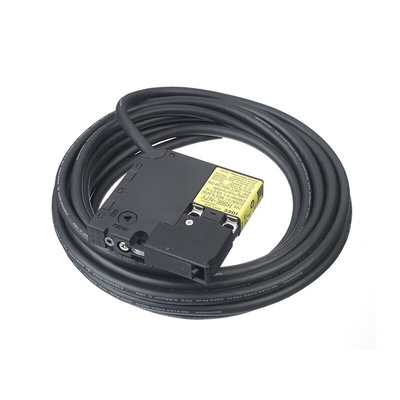

HS6E-N7Y4B05-G, Idec HS6E Safety Interlock Switch, Keyed Actuator Included, Plastic, Solenoid Lock, Выключатель

IDEC Switch

The IDEC HS6B subminiature 5-pole safety interlock switch is the world's smallest switch. It comes in a dimension of 30mm x 15mm x 78mm. This interlock switch is available with a 5m cable length.

Features and Benefits

• 1NC+1NC(main), 1NC, 1NO(door monitor) and 1NO(lock monitor) contact configuration
• Cable connection type
• Compact
• Easy to install
• Highest safety achieve by dual contacts and monitor contacts
• Integral cable design minimizes wiring, preventing wiring
• LED indicator shows solenoid operation
• Service temperature ranges between -25°C and 50°C
• Solenoid lock type
• Two actuator entry slots provide flexibility for installation

Applications

• Tight spaces

Certifications

• CCC certified
• CE certified
• CSA C22.2 No• 14
• CULus listed
• EN1088
• EN60947-5-1
• EN954-1
• GB14048.5
• GS-ET-15
• IEC 60529
• IEC /EN60204-1
• IEC /EN60947-5-1
• IP67 rating
• ISO14119
• SO 13849-1
• TÜV approved
• UL508
• UL-listed
