CGA3E2X7R1H104K080AE, TDK 100nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , SMD, Конденсатор

1795358
Номер производителя: CGA3E2X7R1H104K080AEПроизводитель: TDK
Цена за шт. (норма упаковки 500 шт)
11.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TDK 0603 (1608M) MLCC SMD

The TDK 0603 (1608M) surface mount MLCC has a capacitance of 100nF. It is a product in which conductive resin layers are included in terminations. Soft termination series have higher mechanical endurance by the flexible resin layers which absorb thermal and mechanical stress. TDK CGA Series MLCC is AEC-Q200 rated. The CGA Series MLCC's from TDK are manufactured using a tested and stable manufacturing process and subjected to increased inspections that guarantee a higher level of reliability. This capacitor is available in general voltages up to 50V, mid-voltage up to 630V and up to 150°C operating temperature. In addition, thinner ceramic dielectric layers and multilayer technology give these capacitors a large capacitance. The series is available in Standard, Flexible (Soft) and Conductive Epoxy terminations. The CGA Series is used in a variety of applications, including automotive powertrain systems and safety equipment, smart meters, power supplies, sensor modules and higher reliability/safety applications.

Features and Benefits

• C0G temperature characteristic which has an excellent stable temperature
• Higher mechanical endurance
• Operating temperature ranges between -55°C and 125°C
• X8R type which means maximum temperature is up to 150°C is applicable

Applications

• Fail-safe design in battery line
• Prevention of ceramic body cracks by board bending
• Prevention of solder cracks by thermal shock
• The set having a high probability of fall such as keyless entry and smart key

Техническая спецификация
pdfDatasheet
Автомобильный стандарт:
AEC-Q200
Высота:
0.8мм
Глубина:
0.8мм
Диэлектрик:
X7R
Длина:
1.6мм
Ёмкость:
100нФ
Класс подавления:
Class 2
Напряжение:
50В пост. тока
Отклонение:
±10%
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C

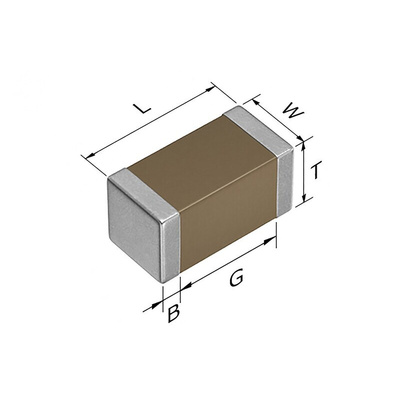

Размеры:
1.6 x 0.8 x 0.8мм
Серия:
CGA
Тип монтажа:
Поверхностное крепление
Упаковка/корпус:
0603 (1608M)
