C3225X7S1H106K250AE, TDK 10μF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , SMD, Конденсатор

1795973
Номер производителя: C3225X7S1H106K250AEПроизводитель: TDK
Цена за шт. (норма упаковки 10 шт)
300.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TDK 1210 (3225M) MLCC SMD

The TDK 1210 (3225M) surface mount MLCC has a capacitance of 10μF. It is a product in which conductive resin layers are included. Soft termination series have higher mechanical endurance by the flexible resin layers which absorb thermal and mechanical stress. TDK Soft Termination Series is designed for use in applications where significant board flex may occur, especially in safety or high-reliability designs. Safety-critical automotive applications such as ABS, ESP, airbags and battery line applications commonly utilize Soft Termination Capacitors from TDK. Conventional termination materials used in standard MLCCs are inflexible, giving vibration, shock, or thermal expansion and contraction the potential to crack or shear the solder joint between the component and the circuit board. In automotive applications, which are exposed to shock and vibration and to extreme temperature swings, this can result in higher failure rates. TDK's new Soft Termination Capacitors provide very high resistance to mechanical and thermal stress to ensure the component can meet the requirements of automotive OEMs.

Features and Benefits

• C0G temperature characteristic which has an excellent stable temperature
• Higher mechanical endurance
• Operating temperature ranges between -55°C and 125°C
• X8R type which means maximum temperature is up to 150°C is applicable

Applications

• Fail-safe design in battery line
• Prevention of ceramic body cracks by board bending
• Prevention of solder cracks by thermal shock
• The set having a high probability of fall

Техническая спецификация
pdfDatasheet
Высота:
2.5мм
Глубина:
2.5мм
Диэлектрик:
X7S
Длина:
3.2мм
Ёмкость:
10мкФ
Класс подавления:
Class 2
Напряжение:
50В пост. тока
Отклонение:
±10%
Рабочая температура - максимальная:
+125°C
Рабочая температура - минимальная:
-55°C

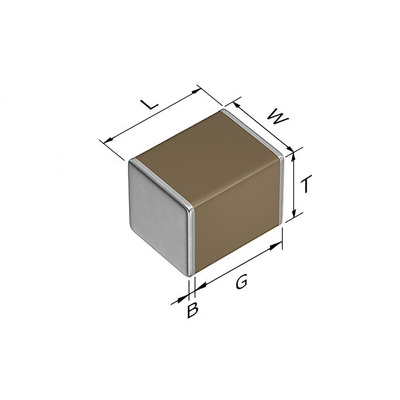

Размеры:
3.2 x 2.5 x 2.5мм
Серия:
C
Тип монтажа:
Поверхностное крепление
Упаковка/корпус:
1210 (3225M)
